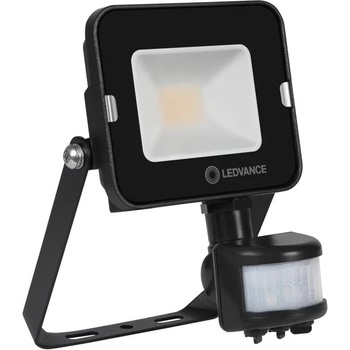

OSRAM LED прожектор Ledvance, 10W, 1000lm, 4000K, IP65, за стена/стълб/под

Product benefits

• Robust, yet light and compact design


• Demand optimized illumination due to flexible and programmable sensor


• Easy adjustment of sensor range, daylight detection and hold time


• Always-on override, activated via special mains switching pattern


• Safe and very uniform illumination, due to frosted and tempered glass diffuser


• No upper light output ratio (ULOR 0%) when mounted at 0° tilt


• Energy savings of up to 90 % compared to halogen lamp floodlights

Areas of application

• Replacement for floodlights with halogen lamps


• Outdoor use (IP65)


• Public areas


• Building facades


• Gardens, balconies and other outdoor areas


• Construction areas

Product features

• Flexible motion and daylight sensor


• Sensor with 350° pan and 180° tilt


• Reflector-based, symmetric light distribution with 100° x 100° beam angle


• Mounting bracket with 30° angle and wide rotation area


• Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm2 single wire

Technical data

Electrical data

Nominal wattage
10.00 W

Nominal voltage
220…240 V

Mains frequency
50…60 Hz

Nominal current
55 mA

Inrush current
6.3 A

Inrush current time T h50
2.3 s

Max. number of luminaires per miniature circuit breaker B16
159

Max. number of luminaires per miniature circuit breaker C10
116

Max. number of luminaires per miniature circuit breaker C16
185

Power factor λ
> 0.80

Total harmonic distortion
< 20 %

Protection class
I

Operating mode
Integrated LED driver

Photometrical data

Luminous flux
1000 lm

Luminous efficacy
100 lm/W

Color temperature
4000 K

Light color (designation)
Cool White

Color rendering index Ra
≥80

Standard deviation of color matching
< 5 sdcm

Luminous intensity
-

Low flicker
Yes

Flickering metric (Pst LM)
-

Stroboscope effect metric (SVM)
-

Photobiological safety group acc. to EN62778
RG1

Photobiological safety group acc. to EN62471
RG1

Beam angle
100 ° x 100 °

Dimensions

Length
153.00 mm

Height
53.00 mm

Width
109.00 mm

Cable length
1000 mm

Materials & Colors

Product color
Black

Housing color
Black

Body material
Aluminum

Cover material
Tempered glass

Light emitting surface material
Glass

Glow Wire Test according to IEC 60695-2-12
650 °C

Mercury content
0.0 mg

Application & Mounting

Ambient temperature range
-30…+45 °C

Temperature range at storage
-40…+70 °C

Type of connection
Cable, 3-pole

Type of protection
IP65

Protection class IK (shock resistance)
IK06

Dimmable
No

Mounting type
Surface

Mounting location
Wall, Pole, Floor

Application environment
Outdoor

Adjustable
Yes

LED module replaceable
Not replaceable

With light source
Yes

Lifespan

Lifespan L70/B50 at 25 °C
50000 h

Lifespan L80/B10 at 25 °C
35000 h

Lifespan L90/B10 at 25 °C
25000 h

Number of switching cycles
100000

Sensor

Type of sensor
Motion, Light

Sensor technology
Passive infrared/Photocell

Sensor detection angle
40 °…160 °

Sensor controlled switching time
10 s…12 min

Detection range of motion sensor
2…12 m

Detection threshold of daylight sensor
10…2000 lx

Sensor IP rating
IP65

Sensor IK rating
IK05

Certificates & Standards

Standards
CE, CB, EAC

Luminaire with limited surface temperature, "D sign"
No

Ball shot safe
No
