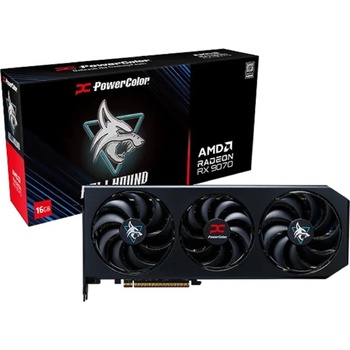

PowerColor Radeon RX 9070 Hellhound OC 16GB GDDR6 256bit (RX9070 16G-L/OC)

Forged for Power and Precision:
The PowerColor Hellhound RX 9070 Series delivers unmatched performance and reliability. Featuring a triple-ring fan design , 4 x 6φ heatpipes, and a copper plate in direct contact with the GPU and VRAM, it ensures exceptional cooling efficiency. Engineered with a excellent phase VRM design and DrMOS with IMON real-time digital monitoring, it’s built to provide stable, high-performance output for intense gaming sessions. The Hellhound is your ultimate ally in the heat of battle.

Specifications

Stream Processor
3584 Units

Video Memory
16GB GDDR6

Memory Speed
20.0 Gbps

Memory Interface
256-bit

Engine Clock(OC)
up to 2120MHz(Game)
up to 2590MHz(Boost)

Engine Clock(STD/Silent)
up to 2070MHz(Game)
up to 2520MHz(Boost)

Bus Standard
PCIE 5.0 x16

Standard Display Connectors
1 x HDMI 2.1b，3 x DisplayPort 2.1a (only 2x simultaneous DP2.1 connections can be supported)

DirectX Support
12

OpenGL
4.6

AMD Stream Technology
Support

AMD Eyefinity Technology
Support

AMD Smart Access Memory
Support

Maximum Resolution
DisplayPort: 7680×4320
HDMI: 7680×4320

Power Specs + Board Dimensions:
Board Dimensions
327mm*128mm*41mm
340mm*142mm*42mm(with bracket)

Slot
2

Minimum System Power requirement (W)
700W

Extension Power Connector
Two 8-pin PCI Express Power connectors

Notes
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.

Recommended power supply for AMD Radeon RX 9070 graphics card is minimum 700W or greater power supply with 12V output > 75A. Minimum recommended system power supply wattage is based on a PC configured with an AMD Ryzen 9 7950X processor plus typical power requirements of other system components. Your system requirements may differ.
