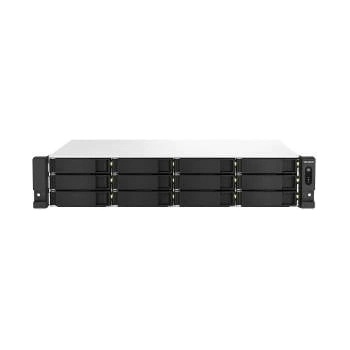

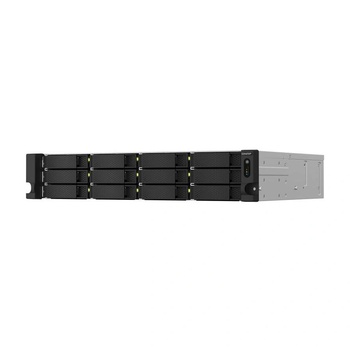

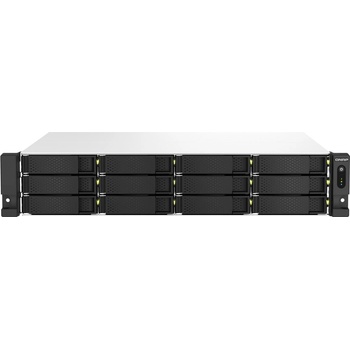

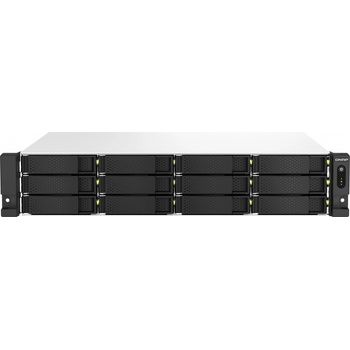

QNAP TS-1264U-RP-8G

TS-1264U-RP

Intel® quad-core rackmount NAS with dual-port 2.5GbE and PCIe expandability for high-speed transmission and virtualization applications

Powered by an Intel® Celeron® N5095 quad-core processor (burst up to 2.9GHz), the TS-1264U-RP features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. The built-in 4K HDMI output allows for multimedia and virtual machine display. With a PCIe Gen 3 slot, the TS-1264U-RP provides flexibility in extending NAS functionality, allowing you to install various cards: a 10GbE/5GbE network card, QM2 card for M. 2 SSD caching, or Edge TPU for AI image recognition. The TS-1264U-RP also supports AES 256-bit encryption to ensure the confidentiality of sensitive business data without affecting system performance. The TS-1264U-RP also features a redundant power supply to ensure maximum system uptime.

The TS-1264U-RP uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2. 2. )

 CPU Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHzCPU Architecture 64-bit x86Graphic Processors Intel® UHD GraphicsFloating Point Unit YesEncryption Engine (AES-NI)Hardware-accelerated Transcoding YesSystem Memory

8 GB SODIMM DDR4

Since 2024/01

Maximum Memory 16 GB (2 x 8GB)Flash Memory 4GB (Dual boot OS protection)Drive Bay 12 x 3.5-inch SATA 6Gb/s, 3Gb/sDrive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drivesHot-swappable (Not supported M. 2 SSD)M. 2 Slot Optional via a PCIe adapterSSD Cache Acceleration Support Yes2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via PCIe expansion card10 Gigabit Ethernet Port

Optional via PCIe expansion card

Optional via PCIe expansion card

Wake on LAN (WOL) YesJumbo Frame YesPCIe Slot

1
Slot 1: PCIe Gen 3 x2

Card dimensions for PCIe slot：160 x 68.9x 28.76 mm / 6.3 x 2.71 x 1.13 inches.

USB 2.0 port 2USB 3.2 Gen 2 (10Gbps) Port 2 x Type A USB 3.2 Gen2HDMI Output 1, HDMI 1.4bForm Factor 2U RackmountLED Indicators HDD 1-12, Status, LAN, Expansion, PowerButtons Power, ResetDimensions (HxWxD) 88.6 × 432 × 370.7 mmWeight (Net) 10.64 kgWeight (Gross) 14.01 kgOperating Temperature 0 - 40 °C (32°F - 104°F)Storage Temperature -20 - 70°C (-4°F - 158°F)Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)Power Supply Unit 300W (x2), 100-240VPower Consumption: Disk Standby Mode 37.854 WPower Consumption: Operating Mode, Typical

70.913 W

Tested with drives fully populated.

Fan 2 x 80mm, 12VDCSystem Warning Buzzer
