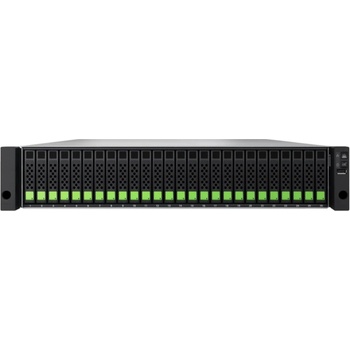

QSAN XCubeSAN XS3326D (90-S3326D00-EU)

Dual-Controller SAN System, iSCSI, Max 512GB RAM, 8-ported 10GbE SFP+ iSCSI with optical transceivers x 4, redundant power supply, redundant fan module, 4 slots for optional host cards, rail kit 8,192 LUNs (max), 2048 iSCSI host (max), 8,128 snapshots (max), local clone, remote replicaiton, thin provisioning



Optimized Performance and Capacity for Mixed Workloads
The XCubeSAN is a capacity-demanding hybrid flash storage. Its multi-bay design minimizes enterprise footprint and power consumption while maximizing storage space. Ultra-high performance is designed to be the ideal solution for applications in mission-critical data centers, high-performance computing, virtualization, or media environments.

High Availability and Enterprise Reliability
The XCubeSAN series is a proven high availability SAN storage system with full redundancy in modular design. Its dual-active architecture and automatic failover / failback mechanism, coupled with cache-to-flash technology, enables the system to withstand critical situations.



SpecificationDetailsCPU Intel® Xeon® 64-bit 4-coreMaximum Memory Capacity 256 GB (per controller)Memory Slots 4 (per controller)Pre-installed Memory 8 GB DDR4 ECC DIMM (per controller)USB Ports 1 (front) / 2 (rear)Other Ports Console Port x1, Service Port (UPS) x1PCIe 2 × PCIe Gen3 x8 slotsSAS Wide Port 2 × 12 Gb/s (onboard per controller)Form Factor 2UHeight 88 mmWidth 438 mmDepth 491 mmWeight 18.6 kgDrive Bays 26 × 2.5" slotsMax Drive Bays (with expansion) 546Drive Interface SAS 12 Gb/s, SATA 6 Gb/sHot Swappable Drives YesMax Internal Raw Capacity 798 TB1 GbE RJ45 LAN 1 (management port per controller)10 GbE SFP+ LAN 4 iSCSI onboard / 4 iSCSI optional10 GbE RJ45 LAN 2 iSCSI optional25 GbE SFP28 LAN 2 iSCSI optional16 Gb Fibre Channel 4 optional / 2 optional32 Gb Fibre Channel 2 optionalManagement Software Web UI, Serial Console, RESTful API, S. E. S. , LCMOperating System XEVORAID Levels 0, 1, 3, 5, 6, 10, 30, 50, 60, 5EE, 6EE, 50EE, 60EE, N-way mirrorStorage Efficiency Thin provisioningAcceleration SSD cache (optional), Auto tiering (optional)Data Protection Snapshot, Local volume cloneRemote Replication Asynchronous (built-in), Synchronous (optional)Security HTTPS, SSH, iSCSI CHAP, ISE & SEDPSU Certification PlatinumPower Supply 2 × 850 WPower Consumption 429 WSystem Fans 4 pcs
