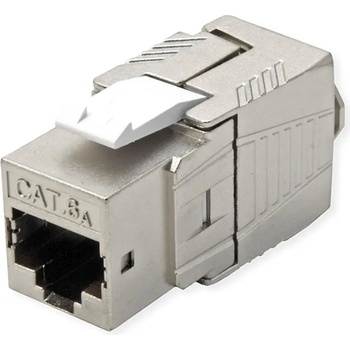

Roline Keystone STP Cat. 6A, GHMT, Roline 21.17. 0327 (21.17.0327)

The solution for Cat. 6A cabling for data rates up to 10Gbit/s - GHMT certified Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use Cat. 6A Keystone Jack (Module) STP Fully shielded Housing (zinc alloy) 360 degree fully shielded Slim type 180 degree cable entry Supports PoE per IEEE 802.3af, PoE+ per IEEE 802.3at For cables with AWG 23-26 For cables with OD: 5.5-9.0 mm Colour code on the Keystone jacks based on the standard EIA/TIA 568 A & B Dimensions (L x W x H): 41.6×16.5×20.3mm GHMT certified Manufacturer ROLINE Product group Connection technology TP Product type RJ45 Keystone Jack Colour silver Shield type Screened Transfer quality Cat6A / Class EA Quantity of ports 1 Assignment EIA/TIA 568A & 568B Connection direction Straight Technical particularity GHMT certified Operating temperature min. -10 °C Operating temperature max. 60 °C Height 20.3 mm Width 16.5 mm Depth 41.6 mm Weight 22 g Height of packaging (single piece) 20 mm Width of packaging (single piece) 20 mm Depth of packaging (single piece) 40 mm Package weight (single piece) 0.02 kg
