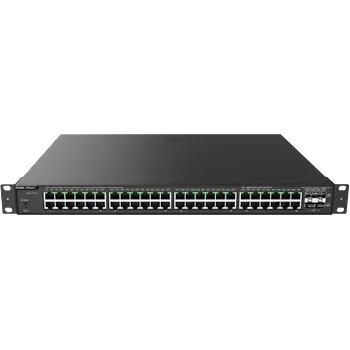

Ruijie RG-NBS3100-48GT4SFP-P

Ruijie RG-NBS3100-48GT4SFP-P-V2

Highlight Features

• 48-Port Gigabit Layer 2 Managed PoE Switch, 4 SFP Uplinks
• Enterprise-Class Quality and Features, Delivering Exceptional Performance
• Multiple Security Policies, Protecting Your Network
• IP Camera Recognition, Unique Value for CCTV Network
• Lifetime Free Cloud Management on Ruijie Cloud at Anytime, Anywhere

P ort Specifications

Total number of RJ45 ports

• 48

Total number of optical ports

• 4

Number of 1GE SFP ports

• 4

Number of 10GE SFP+ ports

• No

Number of 10/100BASE-T ports

• No

Number of 10/100/1000BASE-T ports

• 48

Number of 10/100/1000/2500BASE-T ports

• No

Number of 100/1000/2.5G/5G/10GBASE-T ports

• No

Power Supply and Consumption

Number of PoE Out ports

• 48

Number of PoE/PoE+ Out ports

• 48

Number of PoE/PoE+/PoE++ Out ports

• No

PoE budget

• 370 W

PoE power pins

• 1–2 (+), 3–6 (-)

System Specifications

Forwarding rate

• 77.38 Mpps

Switching capacity

• 104 Gbps(bit/s)

Environment and Reliability

MTBF

• 400,00 0 hours

Operating temperature

• 0°C to +50°C (32°F to 122°F)

Altitude

• Operating altitude: 0 m to +5,000 m (0 ft. to +16,404. 20 ft. )
  Storage altitude: 0 m to +5,000 m (0 ft. to +16,404. 20 ft. )

Surge protection

• Service port: ±6 kV for common mode
  Power connector: ±6 kV for both common mode and differential mode

Software Specifications

Basic Configurations

PoE watchdog

• Yes

Inte rface

Jumbo frame length (MTU)

• 9216 bytes (interface configuration mode)

Security

Port isolation

• Yes

Bro adcast storm control

• Yes
