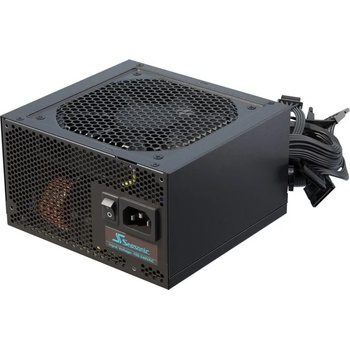

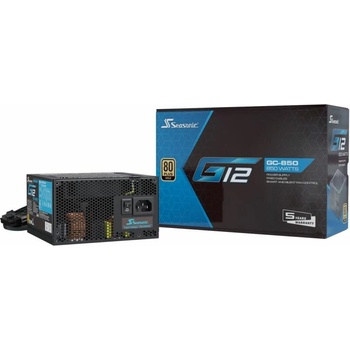

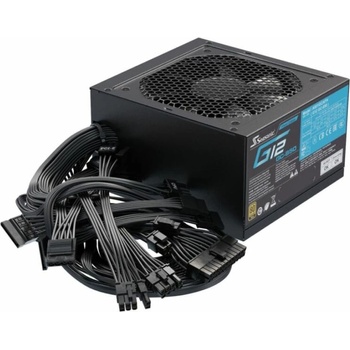

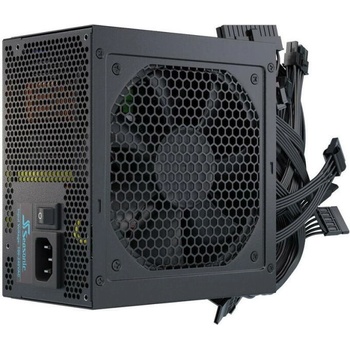

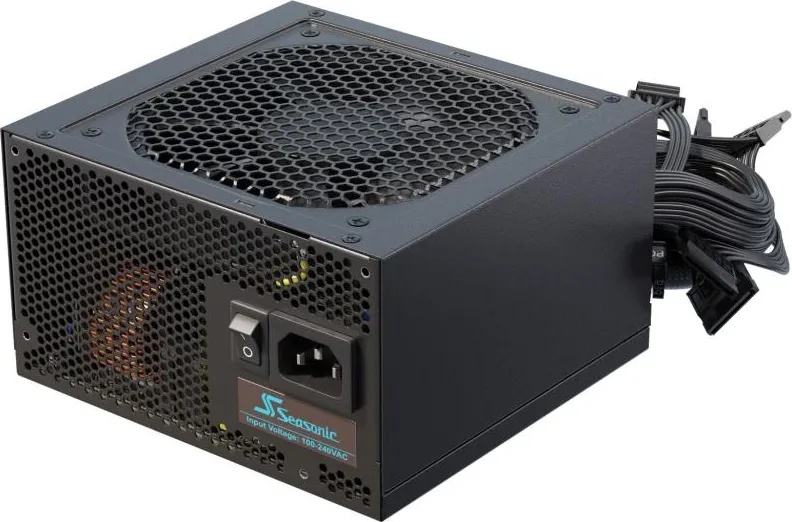

Seasonic G12 GC-850W 80 PLUS Gold (G12-GC-850)

Seasonic G12 GC-850



The G12 GC Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GC-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GC series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GC units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).



80 PLUS® Gold

The G12 GC achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.

S2FC - Smart and Silent Fan Control

The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.





Technical Specifications



Power Output

AC Input
Voltage: 100 V - 240 V

Current: 10 A Max.

Frequency: 50 Hz - 60 Hz

DC Output
Rail
+3.3 V
+5 V
+12 V
-12 V
+5 VSB

Maximum Power
15 A
15 A
45 A
0.3 A
2.5 A

100 W
540 W
3.6 W
12.5 W

Total continuous power
550 W

80PLUS ®
Gold

Cybenetics Efficiency Level
TBA

Cybenetics Noise Level
TBA

Form Factor
Intel ATX 12 V

Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information
Fan Size
120 mm

Fan Control
Smart and Silent Fan Control

Fan Bearing
Sleeve Bearing

Life Expectancy
25,000 hours at 40 °C, 15 % - 65 % RH

Cable Information
Modularity
Fixed cables

Cable type
Flat black cables

Electrical Features
Operating Temperature
0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

MTBF @ 25 °C, excl. fan
100,000 hours

AC Input
Full Range

Protection
OPP, OVP, OCP, SCP

Safety and Environmental
Safety and EMC
cTUVus, TUV, CB, CCC, BSMI, CE, FCC

Environmental Compliance
Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Warranty
5 Years
