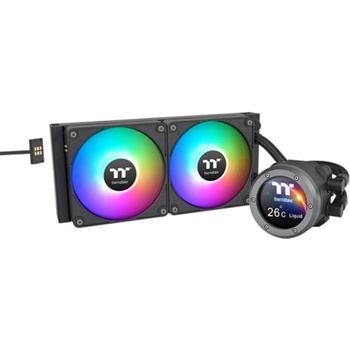

Thermaltake CL-W414-PL12SW-A

Steady Connection with MagForce 2.0:
Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.

Sync with CT120 EX ARGB Sync Fans:
Utilizing the CT120 EX ARGB Sync White Fans on this model, not only you can match up some of our chassis’ pre-installed fans, but you can unify your fans with your build! The CT120 EX ARGB Sync White provides 68 CFM of air flow with 2.95 mm-H2O static pressure while maintaining 28.5 dB-A noise levels.
Note: CT Fans requires motherboard sync software to control ARGB lighting effects.

Enhanced Cooling Surface With A Compact Design:
The TH V2 Ultra EX ARGB Sync Series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

Keep it COLD with Copper:
The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required.

Personalize Your LCD Display:
The TH V2 Ultra EX ARGB Sync Snow Series features an industrial-inspired design to freshen up its 2.1 LCD Display. The highly customizable LCD Display has a 480*480 high resolution, allowing you to showcase 16.8M color videos or photos effortlessly, enhancing the visual aesthetics of your build.

Specifications

PUMP
Motor Speed : PWM 1500~3300 RPM
Rated Voltage : 12V
Rated Current : 0.43A
Power Input : 5.16W

CPU Display
Rated Voltage : 5V
Power Input : 1.15W
Display Type : 2.1TFT-LCD
Display Resolution : 480x480 (RGB) px
Display Support
Interface : Micro USB to USB (9PIN)
System Compatibility : Windows 10 / 11
WATER BLOCK
Material : Copper

Fan
Dimension : 120 x 120 x 25 mm
Speed : PWM 500~2000 R. P. M
Rated Voltage : 12V/5V
Rated Current : 0.19A & 0.32A (one fan)
Power Input : 2.28W & 1.6W (one fan)
Air Flow. : 68 CFM (one fan)
Static Pressure. : 2.95 mm-H2O (one fan)
Noise Level. : 28.5 dB-A

Tube
Length : 460mm
Material : Rubber

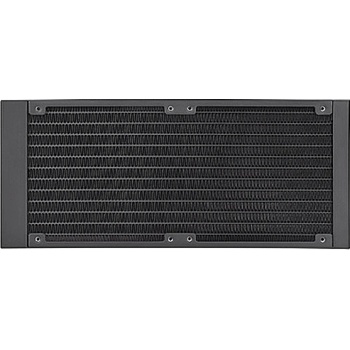

Radiator
Dimension : 276 x 120 x 27 mm
Material : Aluminum

COMPATIBILITY
Intel: LGA 2066/2011-3/2011/1851/1700/1200/1156/115 5/1151/1150
AMD: AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
