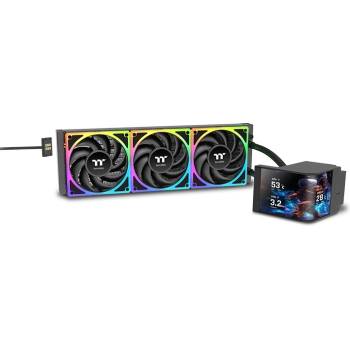

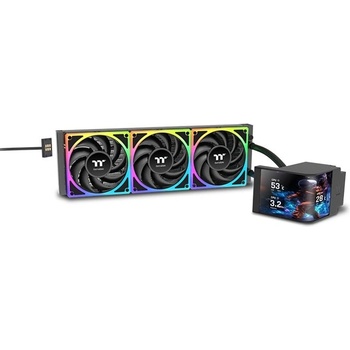

Thermaltake MAGCurve 360 Ultra (CL-W453-PL12SW-A)

Thermaltake MAGCurve 360 Ultra



Personalize Your 6.67" Curved AMOLED Display

The MAGCurve Ultra ARGB Sync Snow Edition features a premium 6.67" Curved AMOLED Display with sharp 2240 x 1080 resolution. It delivers vibrant, high-contrast visuals along with its curved design for a truly immersive viewing experience. More than just a screen, it supports real-time system monitoring, local weather updates, and 3D videos, offering extensive customization to match both your functional needs and personal style.



Preset Dynamic Backgrounds for Captivating Displays

With the TT RGB PLUS 3.0 software, you can elevate your display with stunning preset visuals in six styles (CyberPunk City, SpaceCore, CarCore, Liquid Glass, Astronaut, Gift Box). The software also supports a wide range of formats, including JPG, GIF, PNG, MP4, MOV, and AVI. Effortlessly upload your favorite images or videos to unlock creativity and achieve a distinct, personalized visual effect.



Tailor Every Detail of Your Information

TT RGB PLUS 3.0 offers enhanced control over how real-time system information is presented. Freely choose which system information to show, adjust its on-screen position, customize text colors, and select a background that complements your setup. Make your rig truly your own with a visual showcase that’s uniquely tailored to you.



Split-Screen for Creative Display Combos

The MAGCurve Ultra ARGB Sync enables splitting the curved display into left and right sections, allowing different types of content to be shown on each side. This provides the freedom to mix and match layouts exactly as you prefer, creating a truly personalized visual effect.



Unlocks the Full Potential of RGB Lighting

With the Swappable Fan Blade Design, the MAGCurve Ultra ARGB Sync AIO Liquid Cooler Snow Edition incorporates three standard blades and reversed blades, effortlessly switching between the airflow direction for intake or exhaust while fully showing lighting effects. No more sacrificing aesthetics for your airflow direction!



Steady Connection with MagForce 2.0

The TOUGHFAN EX ARGB Sync White fans included in MAGCurve Ultra ARGB Sync Snow Edition are upgraded to the MagForce 2.0 connector, whose Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential of faulty alignment issues, whether you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.



Enhanced Cooling Surface With A Compact Design

The MAGCurve Ultra ARGB Sync Snow Edition has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

Efficient Cooling with Reliable Pump & Copper Base

The high-quality pump enables maximum water circulation, keeping the copper plate consistently cool. Combined with a high-performance copper base plate, this design accelerates thermal conductivity and rapidly transfers heat away from your CPU.

Cleaning Fans are now Easy and Fun!

Pop and insert, it is that easy.

If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly and apply the bearing lubricant that is included in the package if needed.



Specifications



PUMP Motor Speed: PWM 1500~3300 RPM
Rated Voltage: 12V
Rated Current: 0.43A
Power Input: 5.16WCPU Display Rated Voltage: 5V
Rated Current: 0.8A
Power Input: 4W
Display Type: 6.67 AMOLED
Display Resolution: 2240×1080 (SPR)Display Support Interface: Micro USB to USB (9PIN)
System Compatibility: Windows 10 / 11WATER BLOCK Material: CopperFan Dimension:
120 × 120 × 25 mm

Fan Speed:
PWM 500~2500 R. P. M

Rated Voltage:
12V/5V

Rated Current:
0.27A & 0.72A (one fan)

Power Input:
3.24W & 3.6W (one fan)

Air Flow:
Standard Fan Blade: 77.60 CFM (one fan)
Reverse Fan Blade: 75.80 CFM (one fan)

Static Pressure:
Standard Fan Blade: 3.95 mm-H₂O (one fan)
Reverse Fan Blade: 3.64 mm-H₂O (one fan)

Noise Level:
Standard Fan Blade: 32.80 dB-A (one fan)
Reverse Fan Blade: 35.10 dB-A (one fan)Tube Length: 460 mm
Material: RubberRadiator Dimension: 396 × 120 × 27 mm
Material: AluminumCOMPATIBILITY CPU Socket:
Intel LGA 2066/2011-3/2011/1851/1700/1200/1156/115 5/1151/1150, AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1TDP 365W
