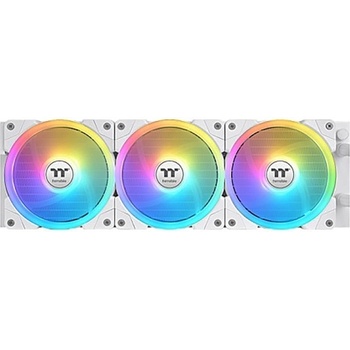

Thermaltake MAGFloe 360 Ultra Snow Edition (CL-W433-PL12SW-A)

MAGFloe 360 Ultra ARGB Sync AIO Liquid Cooler - Snow Edition

The MAGFloe 360 Ultra ARGB Sync Snow Edition features a large 3.95 square LCD display that presents clear, vivid visuals and allows for instant customization through the TT PlayLink app on smartphones. This AIO liquid cooler comes with SWAFAN EX White fans, which boast the MAGForce 2.0 Quick Connection Design and Swappable Fan Blade Design, elevating aesthetics by reducing cable clutter and fully showcasing dual-ring RGB lighting in different airflow directions.





Steady Connection with MagForce 2.0

The SWAFAN EX White fans included in MAGFloe Ultra ARGB Sync Snow Edition are upgraded to the MagForce 2.0 connector, whose Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment, whether you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.





Enhance d Cooling Surface With A Compact Design

The MAGFloe Ultra ARGB Sync series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.





Keep it COLD with Copper

The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required.





PUMP Motor Speed : PWM 1500~3300 RPM
Rated Voltage : 12V
Rated Current : 0.43A
Power Input : 5.16WCPU Display Rated Voltage : 5V
Rated Current : 0.26A
Power Input : 1.3W
Display Type : 3.95TFT-LCD
Display Resolution : 480x480 (RGB) pxDisplay Support Interface : Micro USB to USB (9PIN)
System Compatibility : Windows 10 / 11WATER BLOCK Material : CopperFan Dimension : 120 x 120 x 25 mm
Fan Speed : PWM 500~2000 R. P. M
Rated Voltage : 12V/5V
Rated Current : 0.27 A & 0.72 A (one fan)
Power Input : 3.24 W & 3.6 W (one fan)
Air Flow :
Standard Fan Blade : 57.11 CFM (one fan)
Reverse Fan Blade : 56.26 CFM (one fan)
Static Pressure :
Standard Fan Blade : 2.39 mm-H2O (one fan)
Reverse Fan Blade : 2.02 mm-H2O (one fan)
Noise Level :
Standard Fan Blade : 30.6 dB-A (one fan)
Reverse Fan Blade : 32.5 dB-A (one fan)Tube Length : 460mm
Material : RubberRadiator Dimension : 396 x 120 x 27 mm
Material : AluminumCOMPATIBILITY Intel LGA 2066/2011-3/2011/1851/1700
1200/1156/1155/1151/1150
AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1TDP 355W
