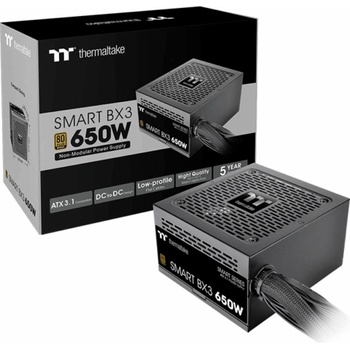

Thermaltake Smart BX3 650W 80 PLUS Bronze (PS-SPD-0650NNFABE-3)

Smart BX3 Bronze 650W



80 PLUS Bronze certified, non-modular PSU built to ATX 3.1 specifications.



Unmatched Reliability ATX 3.1 Power Supply

The Smart BX3 series is designed to meet ATX 3.1 standards, offering 550W, 650W, and 750W options. It's perfect for budget-conscious users seeking an efficient and reliable entry-level power supply.





ATX 3.1 Ready

Smart BX3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.



Be Smart, Stay Quiet

Equipped with a 120mm fluid bearing fan for superior airflow. Additionally, the built-in Smart Zero Fan spins only when the load reaches a certain percentage to minimize unwanted noise.



watts 650WMax. Output Capacity 650WColor Black
 Dimension ( W / H / D ) 150mm(W)x86mm(H)x140mm(D)PFC (Power Factor Correction) Active PFCPower Good Signal 100-150 msecHold Up Time > 17msec at 80% loadInput Current 15A-6AInput Frequency Range 50Hz/60HzInput Voltage 100-240V～OPERATING TEMPERATURE 5°C to + 45°COperating Humidity 20% to 85%, non-condensingStorage Temperature -40°C to + 55°CStorage Humidity 10% to 95%, non-condensingCOOLING SYSTEM 12cm FDB FanEfficiency Meet 80 PLUS® Bronze at 115Vac input. MTBF 100,000 hrs minimumSafety Approval CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/ BSMI/CCCPCI-E 6+2pin 2Smart Zero Fan Fan will not spin until the load exceeds 20%
No physical fan switchPROTECTION OCP/OVP/UVP/OPP/OTP/SCP
