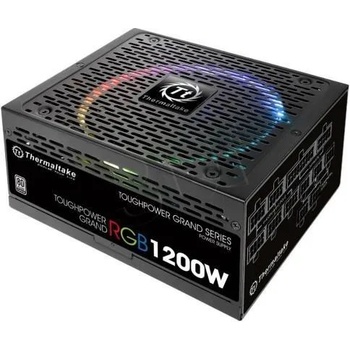

Thermaltake Toughpower Grand Riing 1200W 80 PLUS Platinum (PS-TPG-1200F1FAPE-1)

Thermaltake Toughpower Grand RGB 1200W Platinum
PS-TPG-1200F1FAPE-1

Thermaltake, as the pioneer who incorporates RGB lights into PSU, introduces the Thermaltake Toughpower Grand RGB Series, coming with a pre-installed, patented 256 colors Riing 14 RGB fan with 5 lighting modes (RGB Cycle Mode, Solid Red, Solid Green, Solid Blue, and Solid White), LEDs Off and a built-in memory function.

Featuring capacities ranging from 850W to 1200W and 80 PLUS Platinum certification, Toughpower Grand RGB Series adopts the highest quality components and fully modular design that always accommodate any mainstream build under any circumstances.

One Button to Your Desired Color
By pressing the RGB lighting button, the fan color can be switched among a 256 Color RGB Cycle with variants including Solid Red, Green, Blue, White, and a LED Off mode. The fan is also constructed with a built-in memory function, saving the color applied and insuring the same color selection every time you boot your PC.

New Platform for Better Ripple Noise Performance and Steady Voltage Output
All new circuit design with PFC & LLC digital controllers efficiently reduces ripple noise and gives steady voltage output.

100% High Quality Japanese 105°C/221°F Capacitors
100% high quality 105 °C (221 ° F) Japanese made capacitors which greatly improve the durability and offer the highest stability and reliability.

Fully Modular Low-Profile Flat Cable
Fully modular Toughpower Grand RGB 1200W Platinum offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable can make cable management easier, reduce clutter and increase airflow inside the chassis.

80 PLUS Platinum Certified and Intel C6/C7 States Ready
Deliver up to 92% efficiency under real world load conditions to promise lowest power losses. Additionally, Toughpower Grand RGB Platinum Series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

PSU Type
ATX 12V v2.4 and EPS v2.92

Max. Output Capacity 1200W
Peak Output Capacity 1440W
Color Black
Dimension （ W / H / D ） 150mm(W) x 86mm(H) x 180mm(D)
PFC （Power Factor Correction） Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 16msec at 100% of full load
Input Current 14A
Input Frequency Range 50Hz - 60Hz
Input Voltage 100V – 240V~
Operating Temperature 0°C to + 50°C
Operating Humidity 20% to 90%, non-condensing
Storage Temperature -20°C to + 70°C
Storage Humidity 5% to 95%, non-condensing
Cooling System 14cm hydraulic bearing fan
Efficiency Meet 80 PLUS®Platinum at 115Vac input.
MTBF 120,000 hrs minimum
Safety Approval CE/cTUVus/TÜV /FCC/CCC/EAC /S-Mark
PCI-E 6+2pin 8
Protection OVP, SCP, OPP, UVP, OTP, OCP
