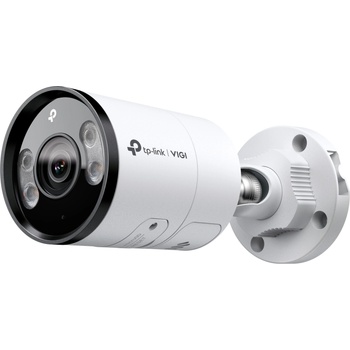

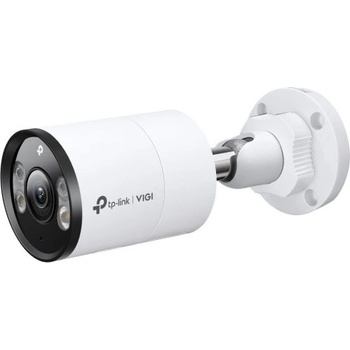

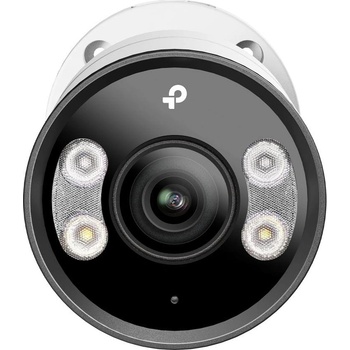

TP-Link INSIGHT S345(2.8MM)

TP-Link VIGI InSight S345

• 4MP Super-High Definition and 24h Full-Color
• People & Vehicle Analytics§
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof
• H. 265+ Compression Technology



People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.



Human & Vehicle Classification

Distinguis h humans and vehicles from other objects and receive more accurate event notifications.





CategorySpecificationCa mera  Sensor 1/2.7 Progressive Scan CMOSShutter Speed 1/3 to 1/10000 sSlow Shutter YesMinimum Illumination 0.005 Lux; 0 Lux with IR/White lightDay/Night Mechanism IR Cut FilterDay/Night Switch Unified/ Scheduled/ AutoLens  Type Fixed Focal LensFocal Length 2.8 mmAperture F1.6FOV (Field of View) 2.8 mm: Horizontal: 100°, Vertical: 54°, Diagonal: 118°Lens Mount M12*P 0.5DORI Distance 2.8 mm: Detect: 64 m (210 ft), Observe: 27 m (89 ft), Recognize: 13 m (43 ft), Identify: 6 m (20 ft) Angle Adjustment (Manual) Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°Illuminator  IR LED Quantity: 2, Range: 30m, Wavelength: 850nmWhite LED Quantity: 2, Range: 30mIlluminator Control Auto/Scheduled/Always on/Always offVideo  Max. Resolution 2688 x 1520Main Stream Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsMain Stream Resolution 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720Sub-Stream Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsSub-Stream Resolution 848x480, 704x576, 640x480, 640x360, 352x288, 320x240Bit Rate Control CBR, VBRVideo Compression Main Stream: H. 265+/H. 265/H. 264+/H. 264 Sub-Stream: H. 265/H. 264H. 264 Type High ProfileH. 264+ Main Stream SupportedH. 265 Type Main ProfileH. 265+ Main Stream SupportedVideo Bit Rate Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 KbpsImage  Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client SoftwareImage Enhancement BLC/3D DNR/HLC/SmartIRWide Dynamic Range 120 dBSNR (Signal-to-Noise Ratio) ≥ 52 dBImage Parameters Switch YesPrivacy Mask Up to 4 MasksROI 1 RegionOSD Setting YesAudio  Audio Communication Two-Way AudioAudio Input YesAudio Output YesAudio Compression YesAudio Sampling Rate 8KHzEnvironment Noise Filtering YesAudio Bit Rate 64 Kbps (G. 711 alaw)Network  Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARPONVIF YesAPI ONVIF Profile S/T/GSimultaneous Live View 3 Main Streams & 3 Sub-StreamsClient VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMSWeb Browser Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and aboveCloud YesProtection Password Protection, HTTPS Encryption, IP Address Filter, Digest AuthenticationEvent & Alarm Management  Smart Event Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, People Detection, Vehicle Detection, Abnormal Sound Detection, Scene Change DetectionBasic Event Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login)Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light FlashingDeep Learning Function People & Vehicle AnalyticsInterfaces  Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoEAlarm N/AReset Button YesPower DC Power PortOn-board Storage Built-In Memory Card Slot, Supports MicroSD Card, up to 512 GBBuilt-in Microphone Yes; Records within a 15-ft Radius of the CameraBuilt-in Speaker YesAudio N/AGeneral Characteristics  Operating Temperature -30–60 °CStorage Temperature -40–60 °COperating Humidity 95% or Less (Non-Condensing)Storage Humidity 95% or Less (Non-Condensing)Package Contents VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting AccessoriesMaterial MetalNet Weight 0.525 KgPower Supply 12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power PlugPoE: 802.3af/at, class 0, Max. 10.7 WProtection IP67Product Dimensions (L x W x H) 7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm)
