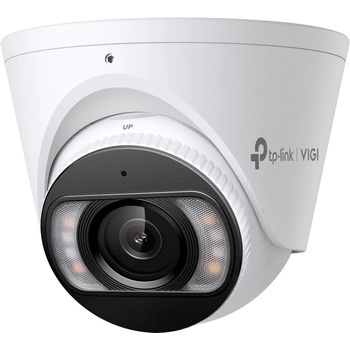

TP-Link INSIGHT S455(4MM)

InSight S455

VIGI 5MP Full-Color Turret Network Camera

• 5MP Super-High Definition and 24h Full-Color
• People & Vehicle Analytics§
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof
• H. 265+ Compression Technology



People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.





Human & Vehicle Classification

Distinguis h humans and vehicles from other objects and receive more accurate event notifications.





CategorySpecificationК амера  Светлочувствителен сензор 1/2.7 Progressive Scan CMOSShutter Speed 1/3 to 1/10000 sSlow Shutter YesMinimum Illumination 0.005 Lux; 0 Lux with IR/White lightDay/Night Mechanism IR Cut FilterDay/Night Switch Unified/ Scheduled/ AutoLENS  Type Fixed Focal LensFocal Length 4 mmAperture F1.6FOV (4 mm) Horizontal: 88°, Vertical: 46°, Diagonal: 105.4°Lens Mount M12*P 0.5DORI Distance (4 mm) Detect: 80 m, Observe: 33 m, Recognize: 16 m, Identify: 8 mAngle Adjustment (Manual) Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°ILLUMINATOR  IR LED 4 pcs, 30 m range, 850 nmWhite LED 4 pcs, 30 m rangeIlluminator Control Auto / Scheduled / Always on / Always offVIDEO  Max. Resolution 2880 x 1620Main Stream Frame Rate 50Hz: 1–25fps; 60Hz: 1–30fpsMain Stream Resolution 2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720Sub-Stream Frame Rate 50Hz: 1–25fps; 60Hz: 1–30fpsSub-Stream Resolution 848x480, 704x576, 640x480, 640x360, 352x288, 320x240Note With image rotation (90°/270°): max 20fpsBit Rate Control CBR, VBRВидео компресия Main: H. 265+/H. 265/H. 264+/H. 264; Sub: H. 265/H. 264H. 264 Type High ProfileH. 265 Type Main ProfileH. 264+ / H. 265+ Main Stream SupportedVideo Bit Rate Main: 256 Kbps–6 Mbps; Sub: 64 Kbps–512 KbpsImage  Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, IR Overexposure Prevention, HLCImage Enhancement BLC, 3D DNR, HLC, SmartIRWide Dynamic Range 120 dB (DWDR only with analytics)SNR ≥ 52 dBImage Parameter Switch YesPrivacy Mask Up to 4 MasksROI 1 RegionOSD Setting YesАУДИО  Аудио комуникация Two-Way AudioАудио вход / изход Yes / YesAudio Compression YesAudio Sampling Rate 8 KHzEnvironment Noise Filtering YesAudio Bit Rate 64 Kbps (G. 711 alaw)МРЕЖА  Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/IPv6, ARPONVIF YesAPI ONVIF Profile S/T/GSimultaneous Streams 3 Main + 3 SubClient Software VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMSBrowser Compatibility Chrome 57+, Firefox 52+, Safari 11+, Edge 91+Cloud Support YesSecurity Password, HTTPS, IP Filter, Digest AuthАЛАРМИ И СЪБИТИЯ  Smart Events Intrusion, Line Crossing, Region Enter/Exit, Object Abandon/Removal, Loitering, People/Vehicle Detection, Abnormal Sound, Scene ChangeBasic Events Motion (Human/Vehicle Enhanced), Tampering, Exception (Illegal Login)Alarm Linkage SD Recording, Push Message, Audible Warning, White Light FlashDeep Learning People & Vehicle Analytics – Search by attributesИНТЕРФЕЙСИ  Network 1x RJ45 10/100M Ethernet Port (PoE)Alarm N/AReset Button YesPower Port DCOn-board Storage MicroSD Slot (up to 512 GB)Built-in Mic / Speaker Yes / Yes (15-ft range)Audio N/AОБЩИ ХАРАКТЕРИСТИКИ  Operating Temp -30–60°CStorage Temp -40–60°CHumidity (Op/Storage) ≤95% (Non-condensing)Package Contents Camera, Quick Start, Waterproof Attachments, Mounting AccessoriesMaterial MetalNet Weight 0.48 kgPower Supply 12V DC ± 5% (11W), PoE 802.3af/at Class 0 (12W)Protection IP67Dimensions (L×W×H) 111 × 111 × 83.7 mm (4.4 × 4.4 × 3.3 in)
