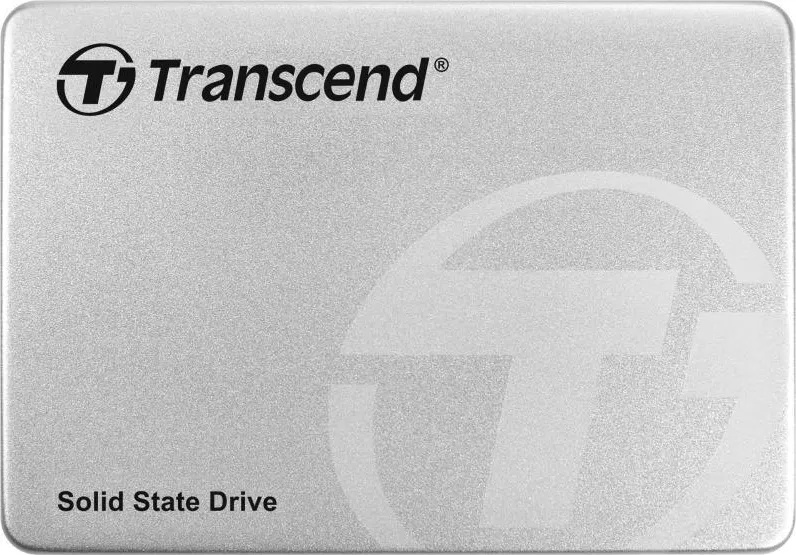

Transcend SSD220 2.5 480GB SATA3 (TS480GSSD220S)

SATA III 6Gb/s SSD220S

Transcend's SATA III 6Gb/s SSD220S uses the latest 3D NAND technology that features vertical, stacked expansion of storage cells. By using high-quality flash memory and enhanced firmware algorithms, the SSD220S delivers greater performance and reliability.

3D expansion to break through limits

Unlike planar NAND memory, 3D NAND flash features memory cells stacked vertically in multiple layers. 3D NAND overcomes density limitations of 2D planar NAND, and delivers a higher level of performance and endurance.



Performance boost for everyday computing

Taking full advantage of the SATA III 6Gb/s interface and built-in SLC caching technology, Transcend's SSD220S achieves exceptional transfer speeds of up to 550MB/s read and 500MB/s write.



Guaranteed endurance and reliability

Transcend's SSD220S offers great Terabytes Written (TBW) values (up to 320 TB) indicating the total amount of data you can write into the drive over its lifetime.



A better choice than HDD

Solid-state drives dominate the market for PC upgrades because they are faster and lighter than hard disk drives. SSDs also feature less power, create less noise when in operation, and are more shock-resistant than traditional hard drives.

Specifications

Appearance

Dimensions:  100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.28")

Weight:  45 g (1.59 oz)

Storage

Flash Type:  3D NAND flash

Capacity

480 GB

Operating Environment

Operating Temperature:  0°C (32°F) ~ 70°C (158°F)

Operating Voltage:  5V±5%

Performance

Sequential Read/Write (CrystalDiskMark):  up to 530/480 MB/s

4K Random Read/Write (IOmeter):  up to 50,000/75,000 IOPS

Terabytes Written (TBW):  160 TBW

Mean Time Between Failures (MTBF):  2,000, 000 hour(s)

System Requirement

Operating System

Microsoft Windows 7

Microsoft Windows 8

Microsoft Windows 10

Linux Kernel 2.6. 31 or later

Technology

TRIM & NCQ Command:  Yes

S. M. A. R. T. :  Yes

Advanced Garbage Collection:  Yes

DevSleep Mode:  Yes

RAID Engine:  Yes

LDPC Coding:  Yes
