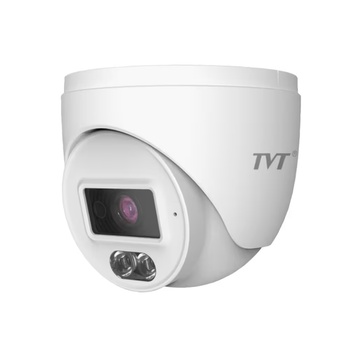

TVT TD-9520S4L-C(D/PE/AW1)

Features

H. 265+ /H. 265 /H. 264+ /H. 264/MJPEG coding

Max. resolution: 2MP ( 1920 × 1080)

Fixed Lens：2.8mm

Auto day/night switch

3D DNR, WDR, HLC, BLC, etc.

ROI coding

Support smart supplement light

10~20m white light view distance; 10~20m IR view distance

DC12V/PoE power supply

IP 67 ingress protection

Support dual streams

Support remote monitoring by smart phones& tablet PCs with iOS and Android OS

Support line crossing detection & region intrusion detection

Support SMD

Specification

Model TD-9520S4L-C Camera Image Sensor1 / 3 "CMOSImage Size1920×1080Electronic Shutter1 / 3s ~ 1 / 100000sIris TypeFixed IrisMin. Illumination0.02 lux @F2.2, AGC ON; 0 lux (Illumination on)Lens2.8mm@F2.2, Horizontal FoV: 95°;Vertical FoV:55°;Diagonal FoV:109°
FocusFixedLens MountM12Day&NightICRWide Dynamic RangeDigital WDRBLCYesHLCYesDigital NRYesS/N Ratio≥50dBAngle AdjustmentPan: 0°~360°; Tilt:0°~75°;Rotation: 0°~360° DORI Distance LensDetectObserveRecognizeIdent ify2.8mm41m(133ft)17m(55ft)8m(26ft)4m(13 ft)3.6mm58m(190ft)23m(75ft)12m(39ft)6m(1 9ft) Image Video CompressionMain stream: H. 265+ / H. 265  /  H. 264  +  /  H. 264 Sub stream: H. 265+ / H. 265 / H. 264 + / H. 264 / MJPEGH. 265 Compression StandardMain Profile@Leve4.1 High TierResolution1080P (1920×1080), 720P(1280×720), D1, VGA(640×480), 480×240, CIFMain Stream1080P/720P(60Hz: 1~30fps; 50Hz: 1~25fps)Sub StreamD1/VGA/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)Bit Rate64 Kbps ~ 3 MbpsBit Rate TypeVBR / CBRAudio CompressionG711A/UImage SettingsROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc.
adjustable through client software or web browserROIEach ROI to be configured separately Interfaces NetworkRJ45Video OutputNoAudio1CH built-in MICStorageNoResetNo Functions Remote MonitoringWeb browser /TVT NVR/NVMS2. X/Mobile APPWeb Browser
