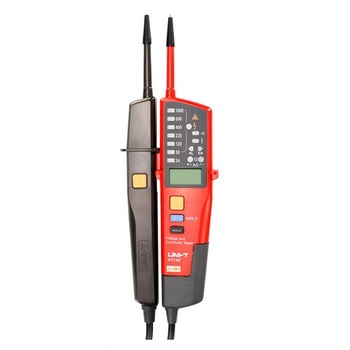

UNI-T Детектор на напрежение UT18E Voltage and Continuity Tester

The UT18E is designed for testing AC/DC voltage (up to 1000V), three-phase voltage/phase sequence, continuity, and more. It continues the lightweight design style of UT18C, LED and LCD can clearly display the measurement results. It complies with CAT IV 600V, and the buzzer alarm function can remind users to maintain safe operation at all times, UT18E is a handy electrician tool.

Specifications Range UT18E
Voltage(AC/DC) 6V ±（1.5%＋1）
12V ±（1.5%＋2）
24V ±（1.5%＋2）
50V ±（1.5%＋3）
120V ±（1.5%＋4）
230V ±（1.5%＋5）
400V ±（1.5%＋5）
690V ±（1.5%＋5）
1000V ±（1.5%＋5）
Phase rotation test 100Vac～400Vac (3 phase) √
Frequency: 50Hz~60Hz
Continuity test Resistance: 0~60k √
Beeper and LED light indication
RCD test Operating voltage: 230V (50Hz~400Hz) √
Polarity detection Positive & Negative √
Self-inspection All LED or LCD √
No power test Operating voltage: 100~1000V √
Features
Voltage indicationLED and LCD
Auto range Full range √
Over voltage protection 1100V √
Auto standby Standот current＜10μA √
Slient mode Full range √
Backlight Full range √
Low battery indication Around 2.4V √
LCD display (voltage) 6V~1000V √
LCD display (Frequency) 40Hz~400Hz ±(3%+5)
IP rating IP65 √
Safety ratingCAT III 1000V; CAT IV 600V
CertificateCE , UKCA, RoHS
General Characteristics
Product Color Red, black
Product weight (include batteries) 277g
Product Dimension 272 x 85 x 31 mm
Standard package Clamshell+insert card+user manual
