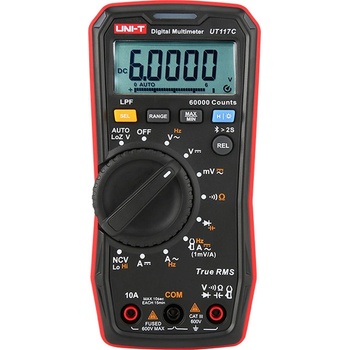

UNI-T UT117C High-precision True RMS Digital Multimeter

UT117C High-precision True RMS Digital Multimeter

UT117C is a high-precision true RMS multimeter, which has AC/DC 600V voltage measurement, 10A AC/DC current measurement, LPF measurement, Bluetooth function, etc.

The main features are fast response, high precision, small size, and easy operation, and product accuracy can still be guaranteed after a 2-meter drop. It is a good tool for electronic electricians.

Features of UT117C High-precision True RMS Digital Multimeter

Certificates: CE, UKCA, cETLus

● High-precision: 60000 counts

● True RMS measurement

● AC/DC current: 10A

● AC/DC voltage: 600V

● LoZ, LPF & Auto Volt function

● Audible & Visual Warning

● Bluetooth app supported

● External current clamp supported

● Compact design, easy & convenient operation

● Drop test: 2m

● Magnetic hanger supported (optional)

● Overvoltage category: CAT III 600 V
Model UT117C
AC voltage 600.00mV/6.0000V/60.000V/600.00V ±(1%＋30)
AC current 6.0000A/10.000A ±(1.5%+30)
DC voltage 600.00mV/6.0000V/60.000V/600.00V ±(0.3%+10)
DC current 6.0000A/10.000A ±(0.5%+10)
Auto-V loz 600.0V ±(1%+3)
LPF voltage (ACV) 600.0V ±(2%+3)
Frequency 99.99Hz/999.9Hz/9.999KHz/50.00KHz ±(0.01%+3)
Resistance 600.00~6.0000M ±(0.5%+5)
40.000M ±(3%+5)
Capacitance 1000nF/10.00uF/100.0uF ±(1.9%+5)
1000uF/10000uF ±(2.5%+5)
Main Features
Display count60000
External current clamp Ratio: 1mV/A √
Continuity & Diode√
NCV√
Data Hold√
Manual/Auto range√
Max/Min√
Relative mode√
High voltage warning√
Audiable & Visuable indication√
Low battery indication√
Auto Power Off Around 15 minutes √
LCD backlight Auto power off after 5 minutes √
Bluetooth√
Drop Test 2m √
Overvoltage categoryCATIII 600V
General Characteristics
Power supply 1.5V AAA * 3
Product Color Red + Grey
Product Weight Around 346g
Product Dimension 169x 84x 48.8mm
Accessories Test probe*1 pair, Battery, Magnetic strap*1 pcs, User manual*1 pcs
