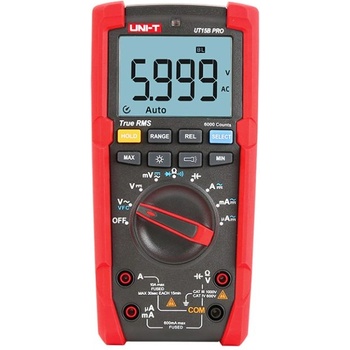

UNI-T UT15B PRO 1000V True RMS Digital Multimeter

UT15B PRO are highly reliable, safe and durable true RMS multimeters with CAT III 1000V/CAT IV 600V ratings. Equipped with built-in VFC, it can filter interference, resulting in a more accurate voltage reading. These meters come with gold plated test leads for quick and accurate measurement. UT15B PRO also provide full range 1000V protection, as well as 8kV transient voltage protection, which can withstand sudden high voltage shocks.

Features of UT15B PRO 1000V True RMS Digital Multimeters

Certifications: CE, UKCA, cETLus

● VFC
● Auto range
● Relative mode
● Flashlight
● True RMS
● Continuity test
● Diode test
● Max/Min
● Data hold
● Low battery indication
● Auto backlight
● Auto power off
Specifications Range UT15B PRO UT17B PRO
Certifications CE/RoHS/cETLus
Safety ratings CAT III 1000V/CAT IV 600V
DC voltage (V) 1000V ±(0.5%+3) ±(0.5%+3)
AC voltage (V) 1000V ±(1%+3) ±(1%+3)
AC current (A) 10A ±(1%+3) ±(1%+3)
DC current (A) 10A ±(0.8%+3) ±(0.8%+3)
Resistance () 60M ±(0.5%+2) ±(0.5%+2)
Capacitance (F) 6000μF ±(2%+5) ±(2%+5)
Frequency (Hz) 10Hz~100kHz±(0.1%+3)
Duty cycle 1%~99%±(1%+4)
Temperature (°C/℉)-55℃~500℃/-67℉~932℉±(2 %+1)
Display count6000 6000
AC frequency response40~500Hz 40~500Hz
General Characteristics
Power 1.5V battery (LR6) x 2
Product net weight UT15B PRO: 484g；UT17B PRO: 484g
Product size 195mm x 95mm x 58mm
Standard accessories English manual, test lead, temperature probe (UT17B PRO)
Standard individual packing Gift box, cloth bag
