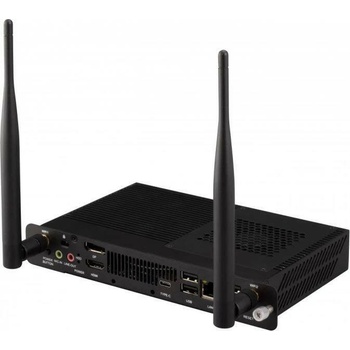

ViewSonic VPC27-W53-O1-1B

VIEWSONIC VPC27-W53-O1-1B Intel Core i7-10700T non vpro 16G RAM 256G SSD WiFi + BT Module Dual Band 80 Pin JAE OPSconnector





Manufacturer
VIEWSONIC

Manufacturer Part No
VPC27-W53-O1-1B



Marketing Description

Seize the power to get more done when you sync your ViewBoard interactive displays and wireless presentation display with the ViewSonic VPC27-W53-O1-1B slot-in PC. Integrated with exceptional performance from Intel 10th Gen Core processors, 16GB DDR4 memory, and up to 256GB of SSD storage, experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.2, and a range of ports, including 4K HDMI, DP1.2, USB 3.2, and Gigabit LAN RJ45 for faster workflows.

Product Features

Ideal integrated solution for ViewBoard interactive displays & commercial displays
Powerful Intel 10th Core Processors
Improved system stability, security, & thermal control

General

Device Type
Slot-in digital signage player

Width
20.2 cm

Depth
11.9 cm

Height
3 cm

Weight
1 kg

OS Provided
Windows 10 Pro 64-bit Edition

Interfaces
USB 2.0, Gigabit Ethernet, USB 3.0, HDMI, USB-C, DisplayPort, IEEE 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Key Features
Digital audio player, digital video player, Wi-Fi, interactive whiteboard

Processor

Manufacturer
Intel

Type
Core i7

Installed Qty
1

Processor Number
I7-10700T

Number of Cores
8-core

Clock Speed
2 GHz

RAM

Technology
DDR4 SDRAM

Installed Size
16 GB

Digital Storage

Storage Drive Type
SSD

Capacity
256 GB

Video Output

Graphics Processor
Intel UHD Graphics 630

Max Resolution
DisplayPort: 3840 x 2160 p, HDMI: 3840 x 2160 p

Memory / Storage

Storage Drive Capacity
256 GB

Storage Drive Form Factor
M. 2

Connectivity

Connections
HDMI inputDisplayPortLAN (Gigabit Ethernet)3 x USB 2.0USB 3.2USB-CAudio line-outMicrophoneOPS slot

Power Device

Power Source
Integrated power supply

Input
AC 100-120 V (50/60 Hz)

Output
19 V, 3.42 A

Software

Software Included
Adobe Reader, WatchDog

Miscellaneous

Compliant Standards
FCC Class B certified, VCCI, BSMI, ICES-003, NOM, CB, CCC, EMC, MIC, RoHS, WEEE, cTUVus, REACH, WPC, LVD, SRRC, NCC, RCM, BIS, COFETEL, CE/EMC, FCC-ID, sDoC, RED

Dimensions & Weight (Shipping)

Shipping Width
25.4 cm

Shipping Depth
19.6 cm

Shipping Height
7.7 cm

Shipping Weight
1.2 kg

Manufacturer Warranty

Service & Support
Advanced Exchange Service - 3 years

Environmental Parameters

Min Operating Temperature
-5 °C

Max Operating Temperature
45 °C

Humidity Range Operating
20 - 80% (non-condensing)

Technical data provided by third party. We assume no liability for errors within these data.
