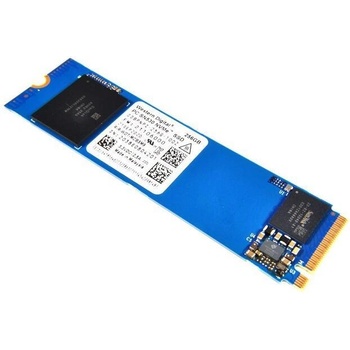

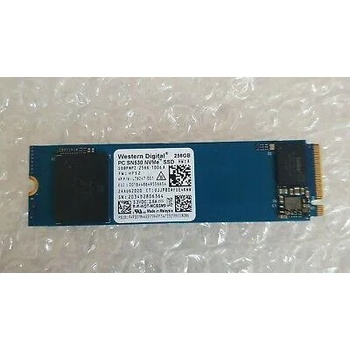

Western Digital SN530 256GB M.2 PCIe (SDBPNPZ-256G)

Outstanding Performance with Greater Design Flexibility

The Western Digital PC SN530 NVMe SSD is designed for a multitude of applications that require both high performance and low power. The device is not only capable of more than three times the read speed over SATA SSDs, but further optimizes the low power consumption level to a mere 5mW.

Equipped with a fully integrated solution including an in-house controller, 96-layer 3D NAND, firmware, and extensive testing, the Western Digital PC SN530 NVMe SSD provides longevity of supply in a robust and reliable design.

Innovative Solution
With future-ready, scalable NVMe architecture, the Western Digital PC SN530 NVMe SSD offers both manufacturers and end-users the solution to innovate and expand their computing effectiveness. This NVMe SSD enables greater design flexibility for ultra-thin notebook or tablet designs that require a cost effective, reliable storage device with a small form factor and capacity points up to 1TB1.

Versatile Options for Mobility
The Western Digital PC SN530 NVMe SSD, supporting PCIe Gen3 x4, is designed for a multitude of applications that require both high performance and low power. Equipped with a fully integrated solution which includes an in-house controller, 96-layer 3D NAND, firmware, and extensive testing, Western Digital provides longevity of supply in a robust and reliable design.

Highlights
● Read speeds up to 2,400 MB/s and low power consumption leverages both the PCIe Gen3 x4 interface, as well as sophisticated NVMe power management
● 256GB - 1TB1 capacities available in three small form factors: M. 2 2230, M. 2 2242, M. 2 2280

Specifications:

Capacity
256 GB

Interface
PCIe Gen3 x4 NVMe v1.4

Form Factor
M. 2 2242 S3-M

Sequential Read Performance
2400MB/s

Sequential Write Performance
950MB/s

Operating Temperature
0°C to 70°C

Non-Operating Temperature
-55°C to 85°C

Dimensions (L x W x H)
1.65" x 0.87" x 0.09"
