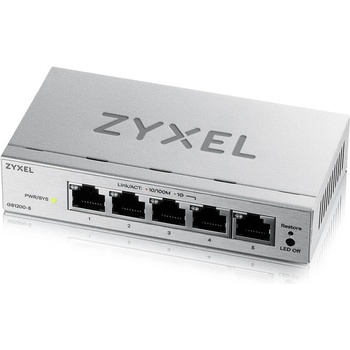

Zyxel GS1200-5V3-EU0101F

Speedy Gigabit Performance and Diversified Options

There are five models for GS1200v3 series, coming with non-PoE (GS1200-5/8) to connect to devices including PCs, NAS, and print servers, PoE capable (GS1200-5HP/8HP) to provide power to IP CAM, wall mounted AP and PoE standard devices, and fiber uplink (GS1200-10) for easily deployment in hallways to connect network devices on the same floor and link them back to the core network.

Smart PoE+ 802.3at Support

PoE models support the IEEE 802.3at PoE+ standard, providing a maximum of 30 watts per port (with a max total power budget of 68 watts) to supply power to PoE network devices like wireless APs, IP cameras and VoIP phones. Web GUI management enables you to monitor the power status on each port and/or reboot the network devices, as needed.

Silent and Light-Off Design

The fanless design ensures all-time silent operation to blend into noise-free working environments. Also, you can deactivate turn off the Ethernet port LEDs for distraction-free operation by switching to LED ECO mode.

Blend Seamlessly into Your Workspace

Place the compact GS1200v3 switch wherever it fits best—on your desk, mounted on the wall, or neatly under the table—without taking up valuable space. Its built-in IEEE 802.3az Energy Efficient Ethernet (EEE) technology automatically detects network traffic and dynamically adjusts power consumption to save energy during low activity periods.

Switch class

Web Managed

Port Density

Total port count

5

10M/100M/1G (RJ-45)

5

Gigabit SFP

-

PoE

PoE ports

-

Total PoE budget (watts)

-

IEEE 802.3at (PoE+)

-

Performance

S witching capacity (Gbps)

10

Forwarding rate (Mpps)

7.44

Packet buffer (byte)

192 KB

MAC address table

4 K

Jumbo frame (byte)

15 KB

Power

Input

100 - 240 V AC, 50/60 Hz

Power supply

External

Min. power consumption (watts) Without any port connection

0.722

Max. power consumption (watts) All ports full load without PoE

2.718

MMax. power consumption (watts) All ports full load with PoE

-

Physical Specifications

Dimensions
(WxDxH)(mm/in. )

121 x 75 x 26/4.76 x 2.95 x 1.02

Weight
(kg/lb. )

0.172/0.38

Green Features

Energy-Efficient Ethernet

Yes

Environmental Specifications

Operating

Tem perature: 0°C to 40°C/ 32°F to 104°F

Humidity: 10% to 95% (non-condensing)

Storage

Tem perature: -40°C to 70°C/-40°F to 158°F

Humidity: 10% to 95% (non-condensing)

MTBF (hr @ 25°C)

1,375, 342

Heat dissipation (BTU/hr)

9.274

Acoustic noise @ 25°C (min/max, dBA)

Fanless, 0
