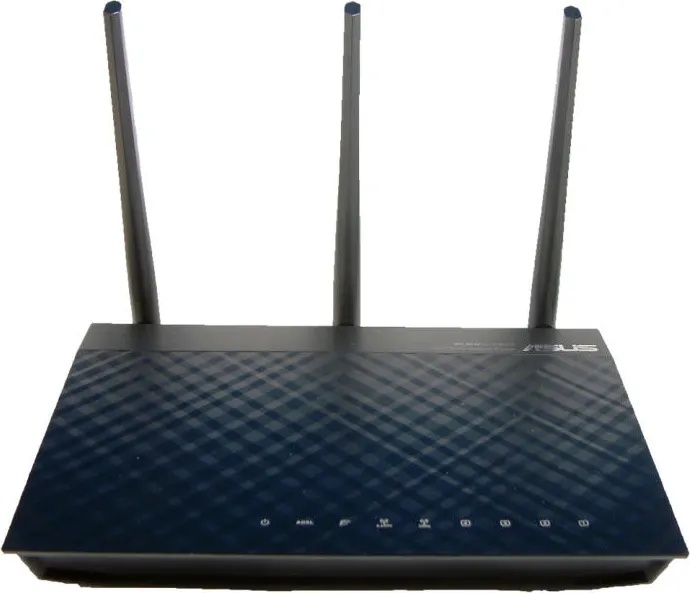

Dual-Band Wireless-N600 Gigabit ADSL Modem Router

- Integrated home gateway with independent CPUs for modem and router
- Dual-band Wi-Fi delivers up to 600Mbps in bandwidth
- 4x Gigabit Ethernet ports provide enhanced wired network performance
- Auto-detecting ADSL connection with CD/manual-free setup
- Finest P2P experience via 300,000 concurrent data sessions
- 3G/4G sharing, file sharing, printer sharing, and iPad charging using multi-functional twin USB ports

Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4, IPv6

Product Segment
N600 advanced performance; 300+300Mbps

Wi-Fi Data Rate
802.11a : 6,9, 12,18, 24,36, 48,54Mbps
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9, 12,18, 24,36, 48,54Mbps
802.11n : up to 600Mbps
xDSL Data Rate
ANSI T1.413 Issue 2,
ITU-T G. 992.1 Annex A (G. dmt),
ITU-T G. 992.2 (G. lite),
ITU-T G. 994.1 (G. hs),
ITU-T G. 992.3 (G. dmt. bis),
ITU-T G. 992.5 Annex A/M
ADSL 2/2+ 24Mbps downstream

Antenna
Detachable dBi dipole antenna x 3

LED Indicator
Power, ADSL, Internet, WLAN, LAN x 4

Button
WPS Button, Reset Button, Power Switch, Wireless on/off Switch

Ports
1 x RJ11 for ADSL
4 x RJ45 for 10/100/Gigabits BaseT for LAN

USB Ports
USB 2.0 x 2

USB Applications
Printer Server
FTP Server
3G/4G sharing

Operating Frequency
2.4GHz
5GHz

Operation Channel
13 Europe (ETSI)

Memory
8MB Flash/128MB DDR2 for Wi-Fi,
1MB Flash/2MB SDRAM for ADSL

Receive Sensitivity
-95dBm@1Mbps
-89dBm@11Mbps
-75dBm@54Mbps
[email protected]
-68dBm@150Mbps

Output Power
b mode : 17 ~19 dBm
g mode : 15 ~17 dBm
n mode : 15 ~17 dBm

Security
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, WPS support

Firewall & Access Control
Built-in NAT and SPI firewall
Port, IP packet, URL, MAC filter

Management
Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
UPnP IGD 1.0
Auto VPI/VCI detection
Configuration backup and restore
Diagnostics
Log & Trace function

Utilities
Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
Auto VPI/VCI detection
Configuration backup and restore
Diagnostics
Log & Trace function
Network Printer Setup
VPN Support
IPSec Pass-Throuth
PPTP Pass-Through
L2TP Pass-Through
PPTP server

Power Adapter
AC Input : 100 ~240 V(50~60HZ)
DC Output : 19 V/1.58 A
Power Consumption : 30 W Max.

Certificates
CE, C-Tick, Telepermit, IDA, PCT, Wi-Fi

Dimensions
207 x 148.8 x 35.5 mm (WxDxH)

Weight
400 g (Device Only)

Environmental
Operating Temperature: -10 °C to 50 °C (14 °F to 122 ºF)
Storage Temperature: -40 ° to 60 ° C (-40 °F to 140 °F)
Operating Humidity: 5 % to 95 % (Non-condensing)
Storage Humidity: 5 % to 95 % (Non-condensing)

OS Support
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® Vista , 32bit/64bit
Windows® XP , 32bit/64bit
Mac OS X
Linux

Продукт известен още и като DSL N 55 U, DSLN55U, DSL N55U, DSL-N55 U
