Share the 4G LTE network wherever you want

LT400 uses the latest generation of 4G LTE technology to achieve speeds of up to 150 Mbps when downloading and 50 Mbps when uploading. You can also connect to games, streaming and more using Wi-Fi at a maximum speed of 300 Mbps to 2.4 GHz.

- 4G LTE FDD: B1 / B3 / B7 / B8 / B20 (2100/1800/2600/900 / 800MHz)

- 4G LTE TDD: B38 / B40 (2600/2300 MHz)

- 3G DC-HSPA + / HSPA + / HSPA / UMTS B1 / B8 (2100 / 900MHz)

Specifications

Model
300Mbps Wireless N 4G LTE Router

DRAM/FLASH
64MB DDR2/8M SPI

Interface

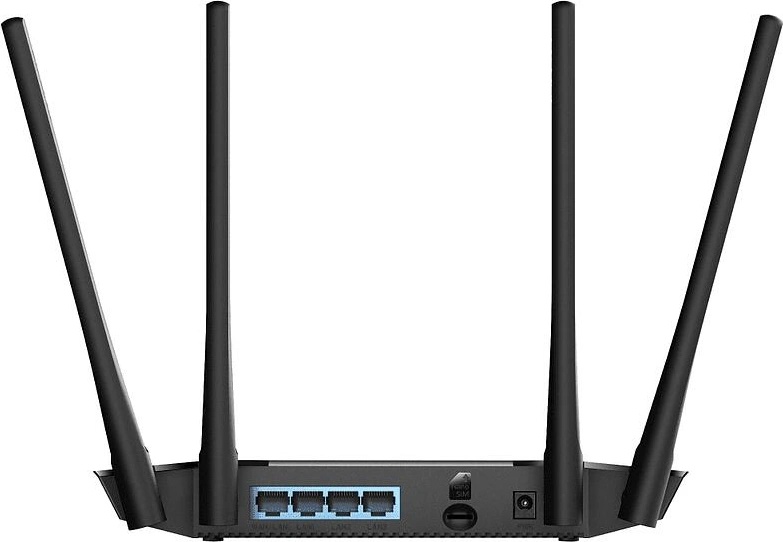

3 x RJ45 10M/100M  LAN Ethernet interfaces

1 x RJ45 10M/100M WAN Ethernet interface

1 x Reset

1 x Power Jack (12V/1A)

1 x SIM card slot (Nano)

Antenna
2.4G (802.11N): 2T2R    4G: 2T2R

Gain
5dBi

Range
2.4-2.4835GHZ

LED
PWR, WIFI, 4G, LAN1-LAN3, WAN/LAN4

Transmit Power
11b: 1/2/5.5/11Mbps

11g: 6/9/12/18/24/36/48/54Mbps

11n: 300Mbps(MAX)

Spread-spectrum technique
DSSS

Wireless Security
WPA-PSK/WPA2-PSK, WPA/WPA2

Modulation type
11b: CCK, QPSK, BPSK

11g: OFDM

11n: QPSK, BPSK, 16-QAM, 64-QAM

Media access protocol
CAMA/CA with ACK

4G module RF Power
Class 4 (33dBm±2dB) for GSM850

Class 4 (33dBm±2dB) for EGSM900

Class 1 (30dBm±2dB) for DCS1800

Class 1 (30dBm±2dB) for PCS1900

Class E2 (27dBm±3dB) for GSM850 8-PSK

Class E2 (27dBm±3dB) for EGSM900 8-PSK

Class E2 (26dBm±3dB) for DCS1800 8-PSK

Class E2 (26dBm±3dB) for PCS1900 8-PSK

Class 3 (24dBm+1/-3dB) for WCDMA bands

Class 3 (23dBm±2dB) for LTE-FDD bands

LTE Character
Support 3GPP R8 non-CA cat 4 FDD

Support 1.4MHZ-20MHZ RF bandwidth UL support MIMO

LTD-FDD: DL 150Mbps(MAX)/ UL  50Mbps(MAX)

LTE Frequency Bands

EU Version
LTE-FDD: B1/B3/B7/B8/B20/B28A

LTE-TDD: B38/B40/B41

WCDMA: B1/B8

GSM/EDGE: B3/B8

LTE Frequency Bands

US Version
LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71

WCDMA: B2/B4/B5

Software function
Access mode
Router mode

Basic setting
WAN setting

LAN setting

Mac clone

DNS

2.4G WiFi setting

2.4G guest network setting

2.4G channel setting

2.4G signal strength setting

2.4G channel optimization

Advance setting
Black list setting

Bonding list

WIFI time off

Web blacklist

Modify administrator password

Panel light time off

QoS

Static bonding

Forbidden connection

Restore to default setting

Restart router

Firmware upgrade

More functional
Web management

L2TP client

PPTP client

UPNP

DMZ

Remote web management

Port forwarding

Network fault diagnosis (web)

Working temperature
0°C~40°C

Storage temperature
-20°C ~ 70°C

Working humidity
5%~95% (typical)

Power
12V/1A European Standard



Продукт известен още и като LT 400 4 G, LT4004G, LT 400 4G, LT400 4 G
