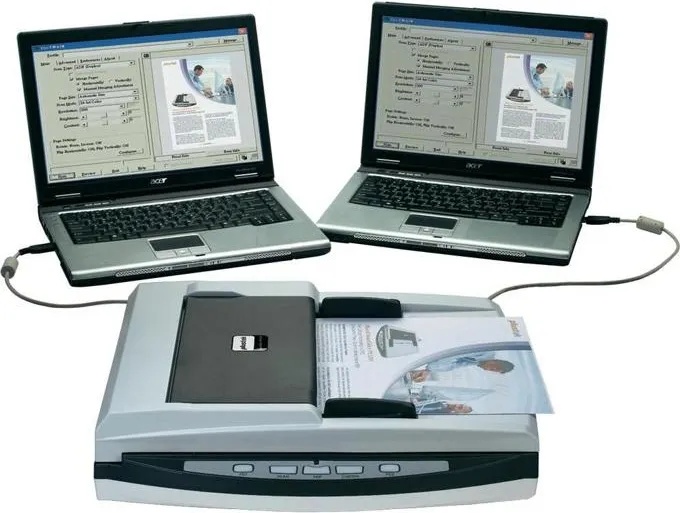

Designed with the reliability demanded by business users, the SmartOffice PL1530 features two USB ports that allow the scanner to be shared between two PCs.







Share!

Two USB ports allow two PCs to Share! The unique Single Touch scanning buttons allow the user to send scanned images to either PC with the touch of a button. Applications that previously required two scanners connected to dedicated workstations can now get by with only one scanner. This saves you money and desk space. Of course, the SmartOffice PL1530 can be used with only one PC as well.







Scan!

A 50 sheet ADF simplifies scanning of multiple paged documents while the integral flatbed enables the scanning of small or delicate documents. The SmartOffice PL1530 automatically determines if the document to be scanned is in the ADF or on the flatbed. No need to change settings to use either the ADF or flatbed. With the press of a button, documents can be saved as searchable PDF and sent to a shared folder, email address, printer or any image enabled Windows application. Scanned documents can also be saved in Microsoft Office format.







Be Productive!

Create searchable PDFs with the touch of a button. The SmartOffice PL1530 is bundled with business card reading software and a suite of document management and scanning applications to allow you to be productive right out of the box. In addition to searchable PDF, the SmartOffice PL1530 can create all popular image file formats. Editable Microsoft Office documents are generated by the included ABBYY FineReader Sprint software. Powerful image processing built into the scanner ensures the highest image quality and OCR accuracy. Industry standard TWAIN and WIA drivers ensure compatibility with thousands of image enabled applications.













Spec

Image Sensor CIS x 2

Optical Resolution 600 dpi

Hardware Resolution:

Flatbed: 600 x 1200 dpi

ADF: 600 x 600 dpi

ADF Capacity:

1. 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 5mm (0.2").

2. 20 sheets (Business Card)

Note: Maximum ADF capacity varies, depending upon paper weight.

Scanning Speed ( ADF ):

9 ppm/ 10 ipm (Color mode, 200 dpi, A4 Portrait)

15 ppm/ 30 ipm (Grayscale mode, 200 dpi, A4 Portrait)

15 ppm/ 30 ipm (B&W mode, 200 dpi, A4 Portrait)

Note: Results may vary depending upon your scanning application, computer processor and system memory.

Scanning Area (W x L):

Flatbed:

Max. 216 x 297 mm

Min. 12.7 x 12.7 mm

ADF:

Max. 220 x 356 mm

Min. 12.7 x 12.7 mm

Acceptable Paper Sizes (W x L):

Flatbed:

Max. 216 x 297 mm

Min. 12.7 x 12.7 mm

ADF:

Max. 220 x 356 mm

Min. 90 x 50.8 mm

Acceptable Paper Weight (Thickness) 50 to 120 g/㎡

Daily Duty Scan ( Sheets ) 1,000

Roller Lifetime (Scans) 100,000

Pad Lifetime (Scans) 25,000

Action Button PC1、Scan、OCR、Custom、PC2

Power Supply 24 Vdc/ 0.75 A

Interface USB 2.0

Net Weight 3.78 Kgs

Dimensions (W x D x H) 418 x 326 x 101 mm

Protocol TWAIN Compliant

OS Windows 2000 / XP / Vista / 7

Hardware Requirements:

Pentium IV 2.0 GHz processor or faster CPU

CD-ROM Drive

Two available USB Port

512 MB RAM or higher recommended

800 MB free HDD space (1 GB or larger recommended)
