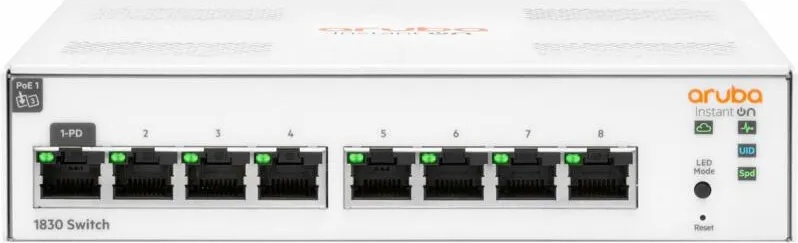

Device Type: Switch - 8 ports - smartEnclosure Type: DesktopSubtype: Gigabit EthernetPorts: 8 x 10/100/1000Performance: Latency (100 Mbps): 5.2 s
Latency (1 Gbps): 2.8 s
Throughput: 11.9 Mpps
Switching capacity: 16 GbpsMAC Address Table Size: 8000 entriesJumbo Frame Support: 9216 bytesRouting Protocol: IGMPv2, IGMPRemote Management Protocol: SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMPEncryption Algorithm: SSLFeatures: Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, Spanning Tree Protocol (STP) support, event log, Quality of Service (QoS), Trusted Platform Module (TPM), Cable Diagnostics Function, fanless, LLDP support, DHCP client, Class of Service (CoS), cloud managed, 1.5MB packet buffer, Secure Copy (SCP), Link Aggregation, dual image support, Denial of Service (DoS) protection, Energy-Efficient Ethernet (EEE), BPDU Filter, loop protection, Global Storm Control, Port SchedulingCompliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3azProcessor: 1 x ARM: 800 MHzRAM: 512 MB SDRAMFlash Memory: 256 MBStatus Indicators: Port status, port duplex mode, link/activity, speedInterfaces: 7 x 1000Base-T RJ-45
1 x 1000Base-T RJ-45 PoE inputPower Device: External power adapterVoltage Required: AC 100-240 V (50/60 Hz)Power Consumption Operational: 8.09 WattMTBF: 188.2 yearsCompliant Standards: IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032:2015, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 60825-1:2014 Class 1, CISPR 32 Class A, EN 55035, CISPR 35, IEC 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, UL 62368-1 Third Edition, IEC 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, FCC CFR47 Part 15 B Class A 2018Width: 17.3 cmDepth: 15.7 cmHeight: 3.91 cmWeight: 770 gService & Support: Limited warranty - lifetime
Technical support - live chat - lifetime
Technical support - phone consulting - 90 days from date of purchaseMin Operating Temperature: 0 °CMax Operating Temperature: 40 °CHumidity Range Operating: 15 - 95% (non-condensing)Min Storage Temperature: -40 °CMax Storage Temperature: 70 °CHumidity Range Storage: 15 - 95% (non-condensing)

Продукт известен още и като JL 810 A, JL 810A, JL810 A
