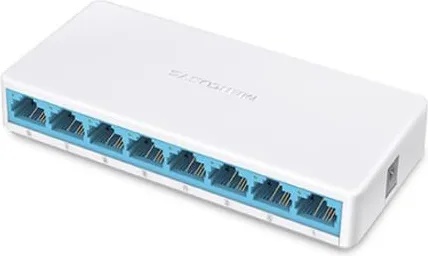

Mercusys MS108

Mercusys MS108

8-Port 10/100Mbps Desktop Switch

Eight 10/100Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
Easily wired network expansion
Compact design for flexible arrangement
Plug and play setup, no configuration required

Sleek, Ultra-Compact Design

About the same size as a smartphone, the MS108 can be placed anywhere in your home without taking up too much space. Its fanless design allows it to remain unobtrusive, regardless of how long it has been running.

Expand Ethernet Network

With eight 10/100Mbps Ethernet ports, you can quickly expand your wired network. The MS108 is flexible and is fully compatible with computers, printers, IP cameras, smart TVs, game consoles, and more. This makes it perfect for home, small
office, and even dormitory environments.

Dimensions (W X D X H) 127 x 60.3 x 22 mm
Interfaces 8 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX
External Power Supply External power adapter
(Output: 5.0VDC / 0.6A)

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD
Fan Quantity Fanless

Data Rates

10/100Mbps at half duplex
20/200Mbps at full duplex
Buffer Capacity 768Kb
Jumbo Frame 2KB
Switching Capacity 1.6Gbps
LED Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power
Transfer Method Store and forward
Certifications CE, RoHS

Environment
Operating temperature: 0°C~40°C (32°F~104°F)
Storage temperature: -40°C~70°C (-40°F~158°F)
Operating humidity: 10% ~ 90% non-condensing
Storage humidity: 5%~90% non-condensing
