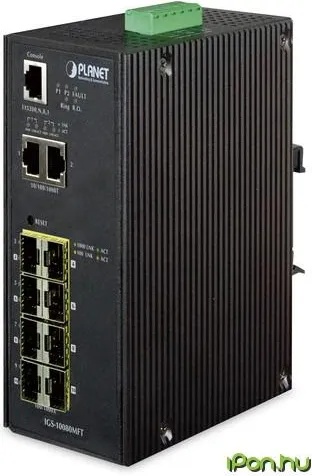

Planet IGS-10080MFT

Multiple SFP Fiber Port Switch for Growing Long-Reach Networking of Industry and Telecom
PLANET IGS-10080MFT is an Industrial 10-Port Full Gigabit Managed Ethernet Switch specially designed to build a full Gigabit backbone to transmit reliable, high speed data in heavy industrial demanding environments and also can forward data to remote network through fiber optic. It provides 8-Port 100/1000Base-X SFP fiber optic interface and 2 extra 10/100/1000Base-T copper interfaces delivered in an IP30 rugged strong case with redundant power system, being able to operate under the temperature range from -40 to 75 Degree C, the IGS-10080MFT can be placed in almost any difficult environment.

Physical Port

8 100/1000Base-SX/LX mini-GBIC SFP slots
2 10/100/1000Base-T Ethernet interface

Industrial Case / Installation

IP30 Aluminum case protection
DIN-Rail and Wall Mount Design
Redundant Power Design
- 12 to 48V DC, redundant power with polarity reverse protect function
- AC 24V power adapter acceptable
Supports EFT protection 6000 VDC for power line
Supports 6000 VDC Ethernet ESD protection
-40 to 75 Degree C operation temperature

Hardware Specification
SFP/mini-GBIC Slots 8 100/1000Base-SX/LX mini-GBIC SFP slots
Copper Ports 2 10/100/1000Base-T Ethernet interface
Switch Architecture Store-and-Forward
Switch Fabric 20Gbps / non-blocking
Throughput (packet per second) 14.8Mpps
Address Table 8K entries, automatic source address learning and ageing
Flow Control IEEE 802.3x Pause Frame for Full-Duplex. Back pressure for Half-Duplex
Jumbo Frame 9Kbytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory Default
ESD Protection 6KV DC
EFT Protection 6KV DC
Enclosure IP30 Aluminum Metal Case
Installation DIN Rail Kit and Wall Mount Kit
Alarm One relay output for power fail
Alarm Relay current carry ability: 1A @ DC 24V
LED Indicators System:
　Power 1 (Green)
　Power 2 (Green)
　Fault Alarm (Green)
　Ring (Green) *
　R. O. (Green) *
Per 10/100/1000T RJ-45 Ports:
　1000 (Green)
　10/100, LNK/ACT (Orange)
Per SFP Interface:
　1000 LNK/ACT(Green)
　100 LNK/ACT (Orange)
Dimension (W x D x H) 72 x 107 x 152mm
Weight 1036g
Power Requirement DC 12 to 48V, AC 24V Power Adapter
Power Consumption 13.92 Watts / 47.76BTU (Full loading)

Layer 2 function
Basic Management Interfaces Web Browser, Remote Telnet, SNMP v1, v2c
Secure Management Interface SSH, SSL, SNMP v3
Port configuration Port disable/enable
Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
Auto-Detection / Forced 100/1000Mbps SFP Fiber transceiver speed
Flow Control disable / enable
Power saving mode control
Port Status Display each ports speed duplex mode, link status, Flow control status, Auto negotiation status, trunk status
Port Mirroring TX / RX / Both
Many to 1 monitor
E. R. P. S. Ring * Recovery time
