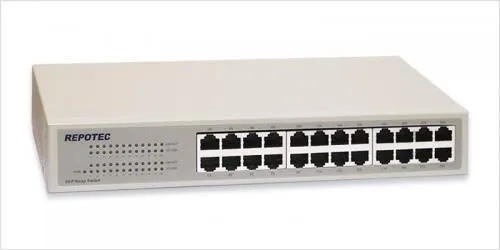

The device is designed to enhance workgroup performance which supports 10/100Mbps Auto-Negotiation for optimal speed detection through RJ-45 copper interfaces. It not only supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity but also automatically identify and determine the correct transmission speed as well as half / full duplex mode. Plug & play and all kinds of network protocols compilation which including runt and CRC error packets make the installation & network management easily and fast. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications.

- Comply with 10Base-T specifications of the IEEE 802.3 standard
- Comply with 100Base-TX specifications of the IEEE 802.3u standard
- RJ-45 ports for 100Base-TX and 10Base-T connectivity
- Support Nway protocol for speed (10/100Mbps) and Duplex mode (Half/Full) auto-detection
- Support Auto MDI/MDI-X crossover
- Support Full and Half Duplex operation on all ports
- Support back-pressure (Half Duplex) and Flow Control (IEEE 802.3x)
- Wire-speed packet filtering and forwarding rate
- Store-and-forward architecture filters fragment & CRC error packets
- Optional 19" rack-mounted kits

Standards

IEEE 802.3, IEEE 802.3u and IEEE 802.3x

Media Support

10Base-T: Cat. 3, 4 or 5 TP
100Base-TX: Cat. 5 TP

Data Transfer Rate

200/100/20/10Mbps

Forwarding/Filtering Rate

10Mbps: 14,880pps/14,880pps
100Mbps: 148,800pps/148,800pps

MAC Address

Supports up to 8K MAC address

Buffer Memory

Embedded 160Kbytes packet buffer

Duplex Modes

Auto-Negotiation

Crossover

Auto MDI/MDIX Crossover function for each port

LED Indicators

System: Power
Port: Link/Activity, 10/100Mbps

Rack-mounted kits

19 inch (optional)

Power Supply

Internal power supply 100~240VAC

Environment

Operating Temperature: 0°C ~ 45°C
Operating Humidity: 10%~90% (Non-Condensing)

Dimension

280 * 161* 44 mm

Certification

FCC, CE
