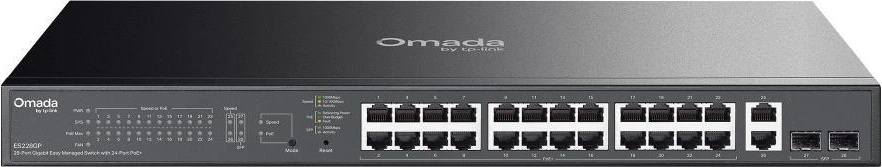

ES228GP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

• 26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
• 2× Gigabit SFP Slots
• 250W PoE Budget, with up to 30W for each PoE port*
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app†
• Up to 820ft PoE**, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Durable metal casing and rack mounting design

  Specifi cation Details Interface 26× 10/100/1000 Mbps PoE+ RJ45 ports (802.3af / 802.3at PoE+), 2× Gigabit SFP slots, Auto-Negotiation, Auto MDI/MDIXFan Quantity 2Installation RackmountPhysical Security Lock YesPower Supply 100–240V AC, 50/60Hz, 4.0APoE Standards IEEE 802.3af PoE, IEEE 802.3at PoE+PoE Ports 24× RJ45 PoE portsPoE Budget 250 W total, up to 30 W per portPoE Features Fast PoE, Perpetual PoE, PoE Auto RecoveryMax PoE Distance Up to 250 mDimensions (W × D × H) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)Surge Protection ±6 kVSwitching Capacity 56 GbpsPacket Forwarding Rate 41.67 MppsMAC Address Table 8KPacket Buffer Memory 4 MbitJumbo Frame 15 KBQoS Types Port-based QoS, 802.1p, DSCPPriority Queues 8Scheduling Mode WRR (Weighted Round Robin)Bandwidth Control Port-based rate limitingStorm Control Broadcast / Multicast / Unknown Unicast (kbps / pps)Link Aggregation Static Link AggregationLoop Protection Loop Prevention, Loopback DetectionFlow Control IEEE 802.3xPort Mirroring One-to-One, Many-to-One, Ingress / Egress / BothPort Statistics Traffic statistics, mirror statusDiscovery Protocol IEEE 802.1ab LLDPIGMP Snooping IGMP v1 / v2 / v3, Fast LeaveVLAN Types MTU VLAN, Port-Based VLAN, 802.1Q Tag VLANVLAN Capacity 32 VLAN groups, 4K VIDSwitching Method Store-and-ForwardOmada App Yes (requires Omada Controller)Centralized Management Omada Cloud-Based, Hardware, or Software ControllerCloud Access YesZero-Touch Provisioning Yes (Cloud-Based Controller required)Management Interface Web-based GUINetwork Services DHCP ClientDiagnostics Cable DiagnosticsAutomation Auto Device Discovery, Batch Configuration, Batch Firmware Upgrade, Unified ConfigurationCertification FCC, CE, RoHSPackage Contents ES228GP, Power Cord, Mounting Brackets, Rubber Feet, Screws, Installation GuideOperating Temperature -5°C to 45°C (23°F to 113°F)Storage Temperature -40°C to 70°C (-40°F to 158°F)Operating Humidity 10%–90% (non-condensing)Storage Humidity 5%–90% (non-condensing)

Продукт известен още и като ES 228 GP, ES 228GP, ES228 GP
