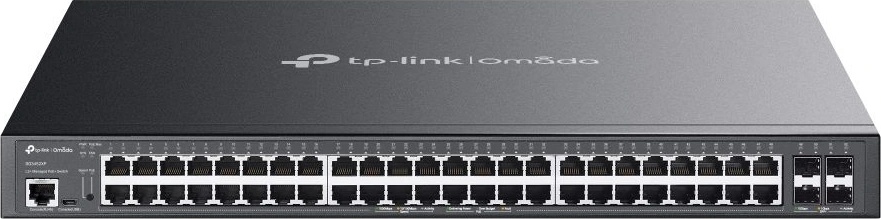

TP-Link Omada SG3452XMPP  Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++

• 4× 10 Gbps SFP+ slots
• 8× Gigabit 802. af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
• 40× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
• 750 W total PoE budget*
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI,  SNMP,  and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Durable metal casing and rack-mountable design

    < /p>Feature DetailsInterface 48× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+), 4× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console PortFan Quantity 3Physical Security Lock Yes (√)Power Supply 100–240 V AC, 50/60 HzPoE Ports (RJ45) Standard: 802.3at/af/bt compliant; PoE++ Ports: Ports 1–8 (up to 90 W per port); PoE+ Ports: Ports 9–48 (up to 30 W per port); Power Budget: 750 WDimensions (W×D×H) 17.3×13.0×1.7 in (440×330×44 mm)Mounting Rack MountableMax. Power Consumption 913.4 W (110V/60Hz) with 750 W PD connectedMax. Heat Dissipation 3114.69 BTU/hr (110 V/60Hz) with 750 W PD connectedSwitching Capacity 176 GbpsPacket Forwarding Rate 130.9 MppsMAC Address Table 16 KPacket Buffer Memory 12 MbitJumbo Frame 9 KBQuality of Service 8 priority queues, 802.1p CoS/DSCP priority, Queue scheduling (SP, WRR, SP+WRR), Bandwidth Control (Port/Flow-based), Smoother Performance, QoS remark (802.1P, DSCP)L2 and L2+ Features 128 IP Interfaces (IPv4/IPv6), 48 Static Routes, 128 Static ARP Entries, 512 ARP Entries, Proxy ARP, Gratuitous ARP, DHCP Server, DHCP Relay (Interface/VLAN), DHCP L2 Relay, Link Aggregation, Spanning Tree Protocol, Loopback Detection, 802.3x Flow Control, MirroringL2 Multicast Supports 1000 IGMP groups (IPv4, IPv6), IGMP Snooping, IGMP Authentication, Multicast VLAN Registration (MVR), MLD Snooping, Multicast Filtering (256 profiles, 16 entries/profile)Advanced Features Automatic Device Discovery†, Batch Configuration†, Batch Firmware Upgrading†, Intelligent Network Monitoring†, Abnormal Event Warnings†, Unified Configuration†, Reboot Schedule†ISP Features L2PT (Layer 2 Protocol Tunneling), Device Link Detect Protocol (DLDP), PPPoE ID Insertion, ERPS, 802.3ah Ethernet Link OAM, DDM, sFlowVLAN Max 4K VLAN Groups, 802.1q Tagged VLAN, MAC VLAN: 30 Entries, Protocol VLAN: Template 16, VLAN 16, Private VLAN, GVRP, VLAN VPN (Mapping/Replace), Voice VLANAccess Control List Time-based ACL, MAC ACL (Source/Dest MAC, VLAN ID, Priority, Ether Type), IP ACL (Source/Dest IP, Fragment, Protocol, TCP Flag, TCP/UDP Port, DSCP/TOS), Combined ACL, Packet Content ACL, IPv6 ACL, Policy: Mirroring, Redirect, Rate Limit, QoS Remark; Applies to Port/VLANSecurity IP-MAC-Port Binding (512 entries), DHCP Snooping, ARP Inspection, IPv4 Source Guard (100 entries), IPv6-MAC-Port Binding (512 entries), DHCPv6 Snooping, ND Detection, ND Snooping, IPv6 Source Guard (100 entries), DoS Defend, DHCP Filter, Static/Dynamic Port Security (up to 64 MAC/port), Broadcast/Multicast/Unicast Storm Control, 802.1X (Port/MAC auth, VLAN Assignment, MAB, Guest VLAN, Radius support), AAA (TACACS+), Port Isolation, HTTPS management (SSLv3/TLS 1.2), CLI management (SSHv1/v2), IP/Port/MAC access controlIPv6 Dual IPv4/IPv6, MLD Snooping, IPv6 ACL, IPv6 Interface, Static IPv6 Routing, ND, MTU discovery, ICMPv6, TCPv6/UDPv6, IPv6 Apps (DHCPv6 Client, Ping6, Tracert6, Telnet v6, SNMPv6, SSHv6, SSLv6, HTTP/HTTPS, TFTP)MIBs MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting/Authentication MIBs (RFC2620, RFC2618), Remote Ping/Traceroute MIB (RFC2925), TP-Link private MIBOmada App Yes (requires Omada Hardware, Cloud-Based, or Software Controller)Centralized Management Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software ControllerCloud Access Yes (requires Omada Controller)Zero-Touch Provisioning Yes (requires Omada Cloud-Based Controller)Other Management Features Web GUI, CLI (console/telnet), SNMP v1/v2c/v3 (Trap/Inform, RMON 1/2/3/9), SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP AutoInstall, Dual Image/Dual Config, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log

Продукт известен още и като SG 3452 XMPP, SG 3452XMPP, SG3452 XMPP
