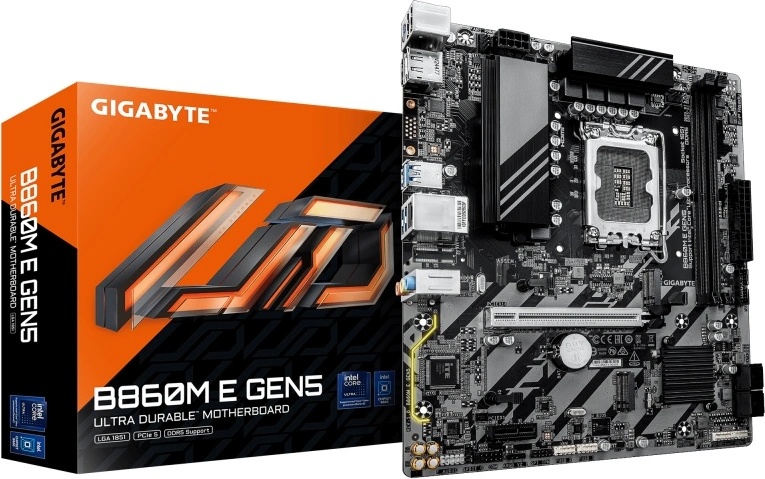

GIGABYTE B860M E GEN5 Дънни платки
GIGABYTE B860M E GEN5 Дънни платки
112,90 €
Оферти за GIGABYTE B860M E GEN5
Офертите за продукта
Още подобни стоки от най-популярните
Други стоки марка GIGABYTE: GIGABYTE Дънни платки
от 167,84 €
MSI PRO B860M GAMING PLUS WIFI
от 129,19 €
GIGABYTE B860M D3HP
от 176,00 €
GIGABYTE B860M GAMING X WIFI6E
от 144,49 €
GIGABYTE B860M DS3H
Описание, детайли - GIGABYTE B860M E GEN5
Ценова графика
Така ще разберете кога се променя цената на стоката.
Известие за цена
Услугата Известие за цена Ви уведомява, когато цената на стоката падне под избраната стойност.
Най-ниска актуална цена: 112,90 €
Описание
| CPU Socket | Socket 1851 |
| Чипсет | Intel B860 |
| Марка процесор | Intel |
| Тип на паметта | DDR5 |
Изходи | |
| Слот на видеокартата | PCI-Express |
| Multi VGA | Няма |
| D-SUB | Не |
| DVI | Не |
| HDMI | Да |
| DisplayPort | Да |
Изводи | |
| Брой слотове за памет | 2 |
| Брой SATA интерфейси | 4 |
| Брой слотове PCI-Express 16x | 1 |
| Брой слотове PCI-Express 8x | Няма |
| Брой слотове PCI-Express 4x | Няма |
| Брой слотове PCI-Express 1x | 1 |
| Брой слотове PCI | Няма |
Портове | |
| SATA 3 интерфейси | 4 |
| m.2 интерфейси | 2 |
| Брой USB портове | 6 |
| USB 2.0 на задния панел | 2 |
Още параметри | |
| Максимален капацитет памет | 128 GB |
| Интегрирана звукова карта | Да |
| Аудио канали | 7.1 |
| Звукова карта тип | CODEC 7.1 |
| Цифров аудио изход | Няма |
| Интегрирана LAN връзка | 10/100/1000 Mbit/s |
| Wireless LAN | Не |
| Bluetooth | Не |
| RAID адаптер | Да |
| RAID нива | 0, 1, 5, 10 |
| Формат | microATX |
| Размер на дънната платка | 244 x 215 |
Виждате грешка в описанието или таблицата? Сигнализирайте ни!
CPU LGA1851 socket: Support for Intel Core Ultra Processors (Go to GIGABYTE's website for the latest CPU support list. ) L3 cache varies with CPU Chipset Intel B860 Express Chipset Memory Support for DDR5 8800(O. C) / 8600(O. C) / 8400(O. C) / 8266(O. C) / 8200(O. C) / 8000(O. C) / 7950(O. C) / 7900(O. C) / 7800(O. C) / 7600(O. C. ) / 7400(O. C. ) / 7200(O. C. ) / 7000(O. C. ) / 6800(O. C. ) / 6600(O. C. ) / 6400 / 6200 / 6000 / 5800 / 5600 MT/s
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information. ) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support. ) Audio < /p>Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out LAN < /p>Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Expansion Slots CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Storage Interface Chipset:
- 2 x M. 2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset:
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan/water cooling pump header
2 x addressable RGB Gen2 LED strip headers
2 x M. 2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port
1 x HDMI port*
1 x DisplayPort*
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
* Actual support may vary by CPU. I/O Controller iTE I/O Controller ChipH/W MonitoringVoltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Smart Backup Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
* The Intel NPU driver and Intel 800 Platform Performance Package Installer are only supported on Windows 11. Form Factor Micro ATX Form Factor; 24.4cm x 21.5cm
Продукт известен още и като B 860 M E GEN 5, B860MEGEN5, B 860M E GEN5, B860M E GEN 5
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information. ) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support. ) Audio < /p>Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out LAN < /p>Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Expansion Slots CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Storage Interface Chipset:
- 2 x M. 2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset:
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan/water cooling pump header
2 x addressable RGB Gen2 LED strip headers
2 x M. 2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port
1 x HDMI port*
1 x DisplayPort*
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
* Actual support may vary by CPU. I/O Controller iTE I/O Controller ChipH/W MonitoringVoltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Smart Backup Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
* The Intel NPU driver and Intel 800 Platform Performance Package Installer are only supported on Windows 11. Form Factor Micro ATX Form Factor; 24.4cm x 21.5cm
Продукт известен още и като B 860 M E GEN 5, B860MEGEN5, B 860M E GEN5, B860M E GEN 5
