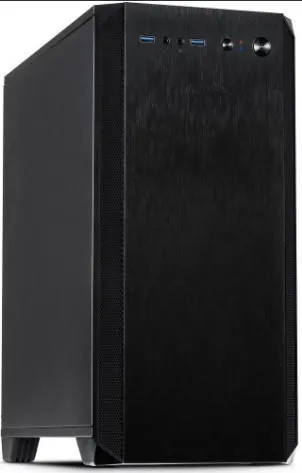

With its pleasing appearance, the H-606 bis the perfect basis for a silent PC system. The sound insulated case was developed for quiet systems and is therefore ideal for use in a low-noise environment.

Its compact design in the Micro-ATX standard offers, thanks to the absence of external drive bays, enough space and can also accommodate graphics cards up to a length of 32cm.

Standard insulation mats on both sides and cover, a graphics card holder and a smooth-running 120mm fan on the back ensure an extremely quiet, as well as well-cooled system.

Specifications

Size
Form factor: μATX
Dimensions (h/w/d): 405 x 190 x 390mm

INSTALLATION DIMENSIONS
Height CPU cooler (max. ): 150mm
Length graphics card (max. ): 320mm

DRIVE BAYS
5.25" external
3.5" external
3.5" internal: 2x ¹
2.5" internal: 5x ¹
¹ can vary by using several mounting options

FRONT CONNECTORS
USB 3.0: 2x
USB 2.0
Microphone: 1x
Headphones: 1x

POWER SUPPLY
ATX-PSU

FAN MOUNTING OPTION
Front: 3x 120mm (optional)
Rear: 1x 120mm (serial, 3Pin)

Features

Both sides and cover sound insulated
Screwless mounting for 3.5" HDDs
Reusable mesh grid slot brackets
Rubberized pads for vibration-free power supply operation
Easy-to-remove dust filter below the power supply
Receptacle for water cooling in sizes 120mm and 240mm
1x 120mm fan on the back installed as standard
Openings for easy laying of the cables
Side parts secured with knurled screws
USB 3.0 and audio plug internally as standardized block plug
Preparation for Kensington lock
Lock loop
Stands
