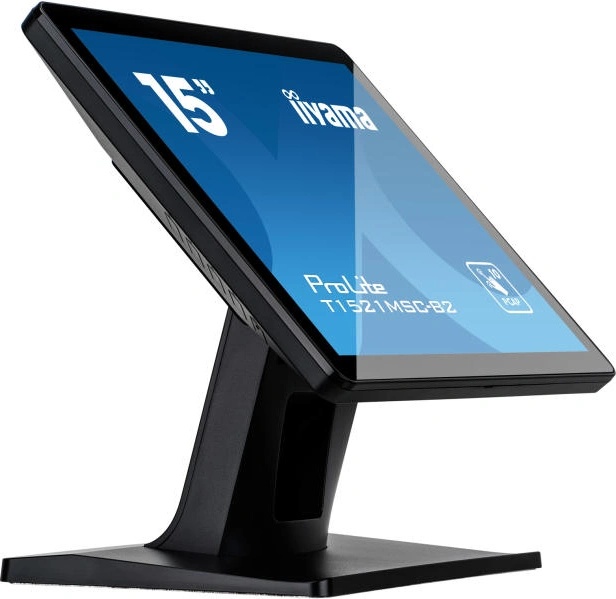

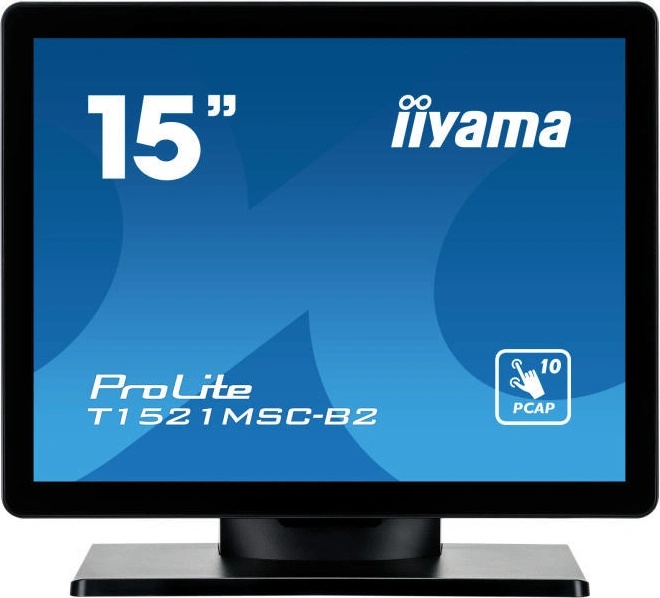

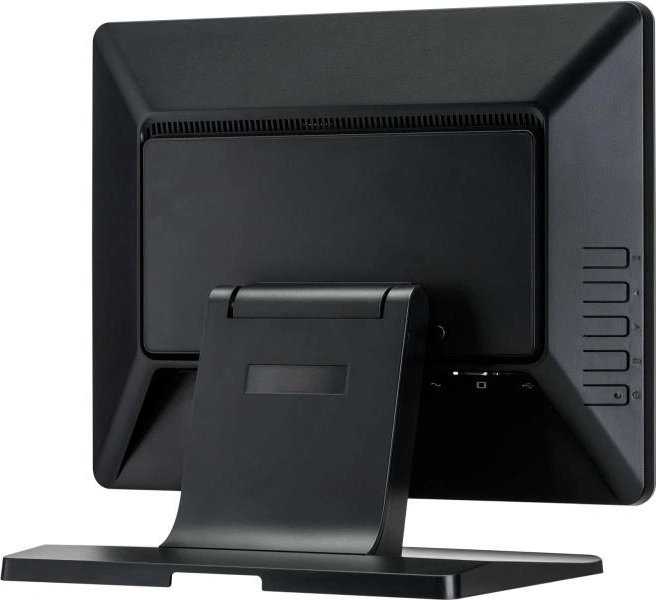

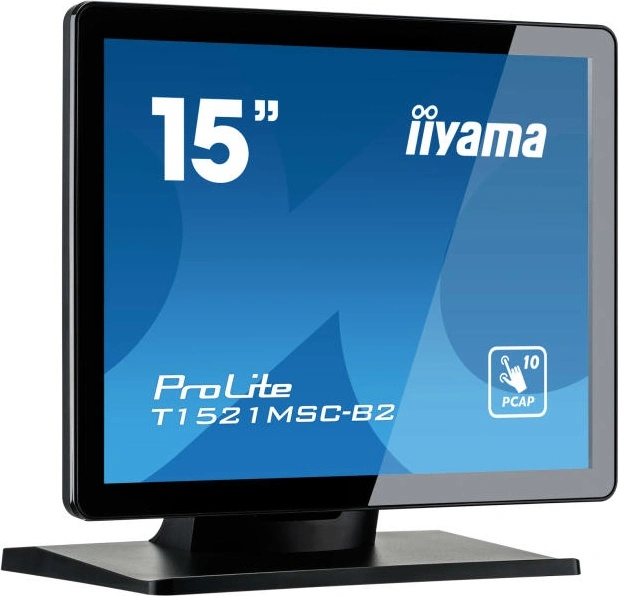

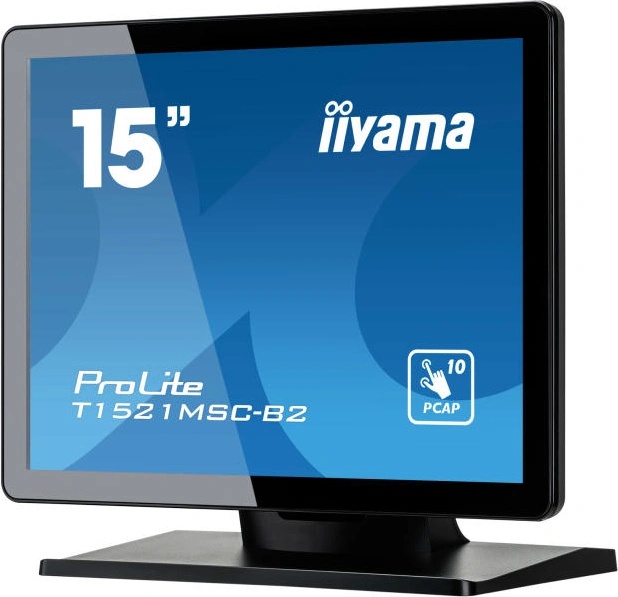

ProLite T1521MSC-B2 15" Projective Capacitive 10pt touchscreen The ProLite T1521MSC-B2 15 touchscreen is based on projected capacitive technology, offering optimal seamless and accurate touch response. Due to its glass overlay, it guarantees high durability, scratch-resistance and perfect picture performance. A solid and steady base supports the touchscreen with an adjustable stand offering up to 70 degree tilt angles. Menu buttons are located on the back of the screen which can be locked to prevent tampering, and includes a handy function to deactivate the touchscreen for cleaning. The ProLite T1521MSC-B2 is an incredibly powerful touch solution, perfect for instore retail purposes.   Touch technology - Capacitive This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.    Scratch resistance Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.    IP65 The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.    Speakers This LED monitor is equipped with two high quality stereo speakers.    VESA VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.    Specifications:
DISPLAY CHARACTERISTICS
Design     Edge to edge glass
Diagonal     15", 38cm
Panel     TN
Native resolution     1024 x 768 (0.8 megapixel)
Aspect ratio     4:3
Panel brightness     370 cd/m2
Brightness     325 cd/m2 with touch
Light transmittance     88%
Static contrast     800:1
Response time (BTB)     8ms
Viewing zone     horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support     16.7mln
Horizontal Sync     31.4 - 60kHz
Viewable area W x H     304 x 228mm
Pixel pitch     0.297mm
Bezel colour and finish     black, matte
TOUCH
Touch technology     projective capacitive
Touch points     10 (HID, only with supported OS)
Touch method     stylus, finger, glove (latex)
Touch interface     USB

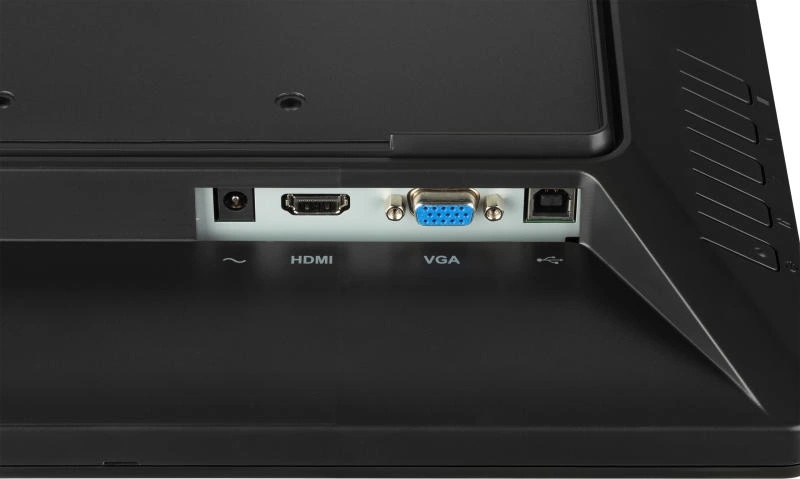

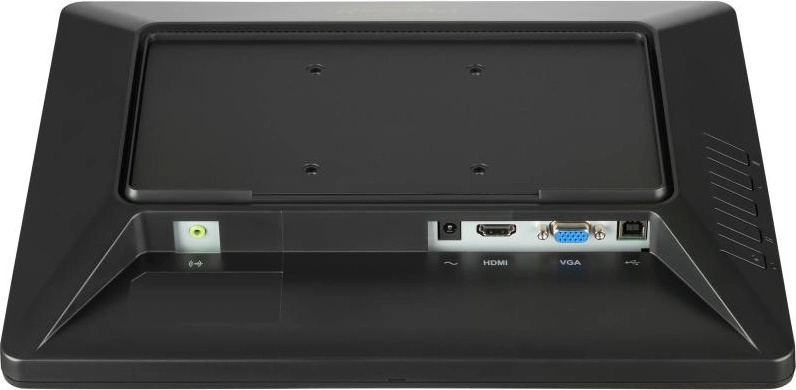

INTERFACES / CONNECTORS / CONTROLS
Analog signal input     VGA x1
Digital signal input     HDMI x1

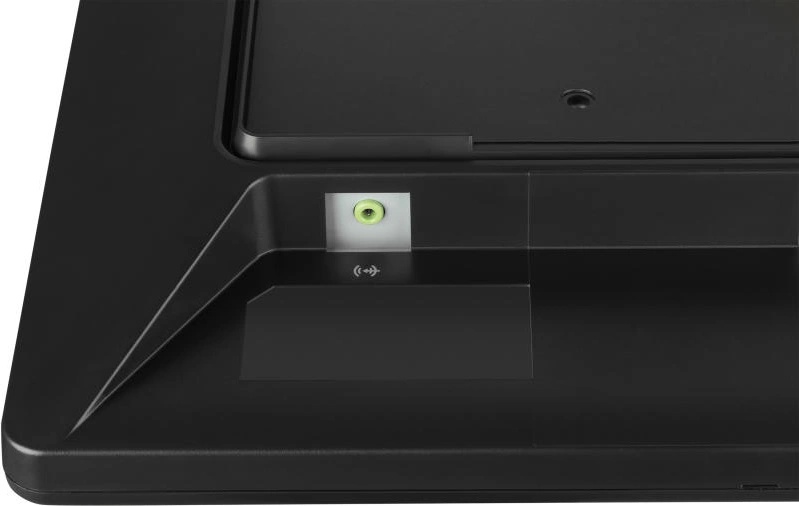

Audio output     Speakers 2 x 2W
FEATURES
Glass thickness     1.2mm
Glass hardness     7H
Water and dust protection     IP65 (front)
OSD key lock     yes
GENERAL
OSD languages     EN, DE, FR, ES, IT, RU, JP, NL

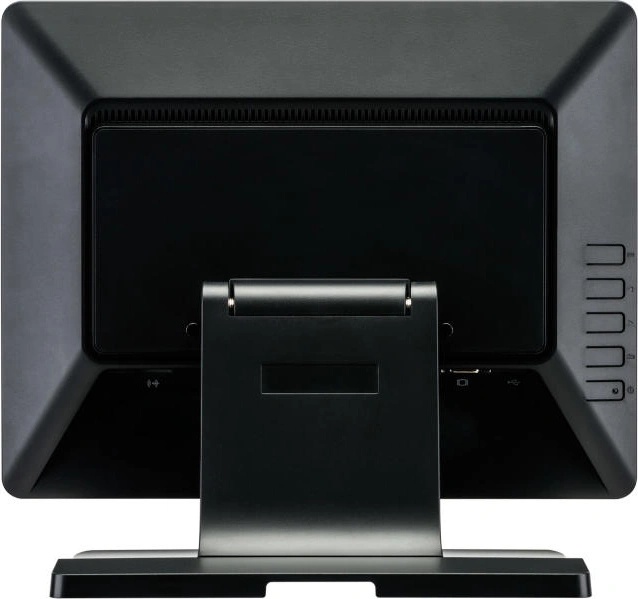

Control buttons     Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power
User controls     picture (backlight, brightness, contrast, sharpness), display (auto adjustment, H position, V position, pixel clock, phase), color (color temp, picture mode), input, audio (volume, mute), other (reset, OSD time, OSD H position, OSD V position, language), information
Plug&Play     DDC2B
MECHANICAL

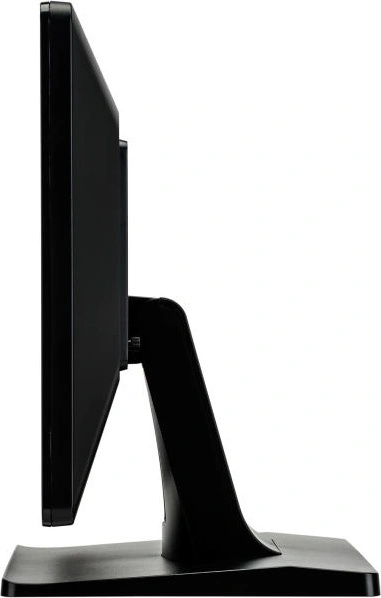

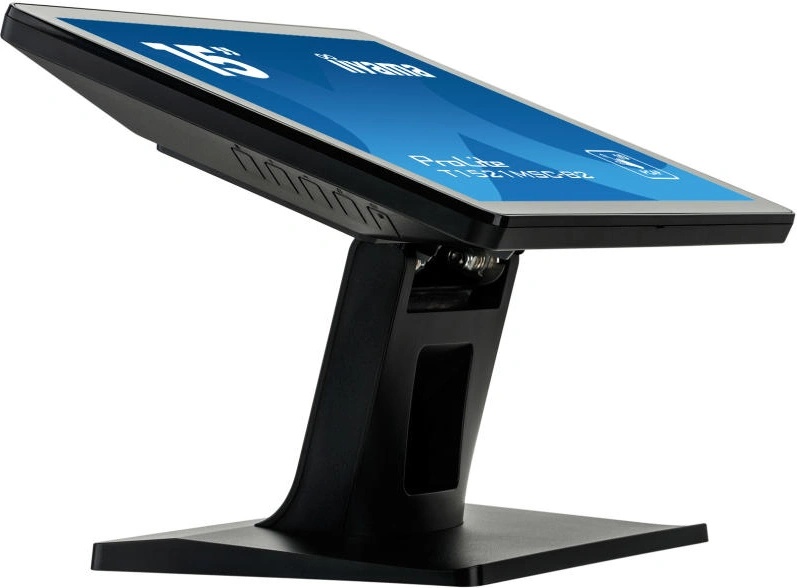

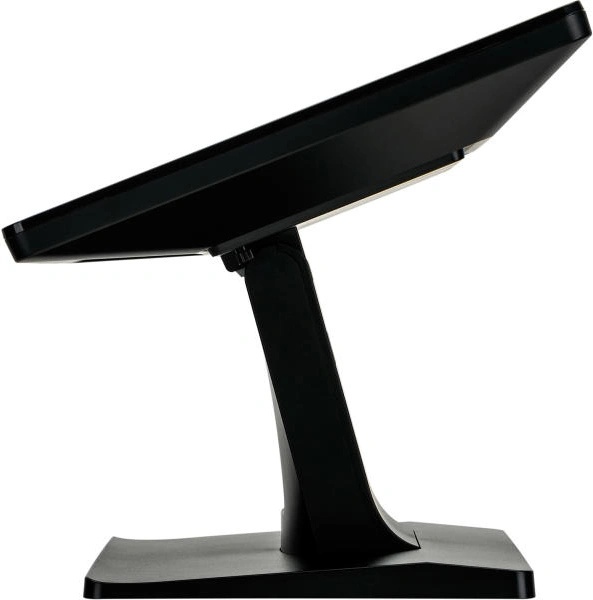

Tilt angle     70° up; 10° down

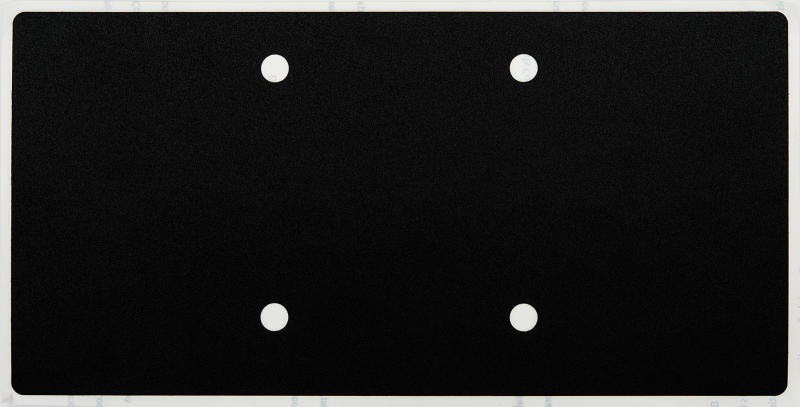

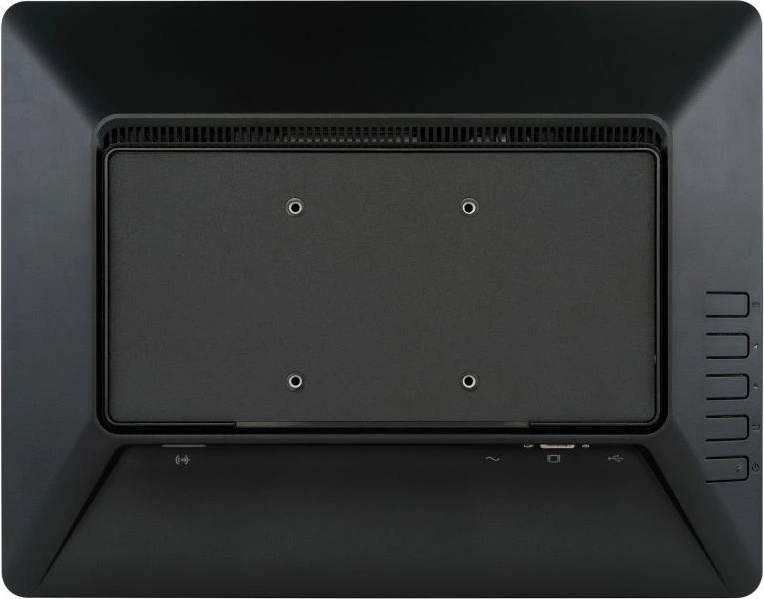

VESA mounting     75 x 75mm
Cable management system     yes
POWER MANAGEMENT
Power supply unit     external
Power supply     DC 12 V
Power usage     16W typical, 1.5W stand by, 0.5W off mode
SUSTAINABILITY
Regulations     CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)     E
REACH SVHC     above 0.1%: Lead
DIMENSIONS / WEIGHT
Product dimensions W x H x D     340.5 x 308 x 198mm
Weight (without box)     3.5kg
