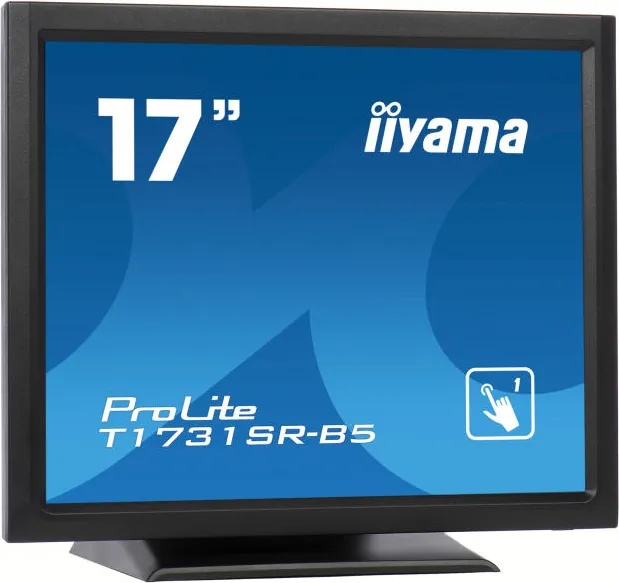

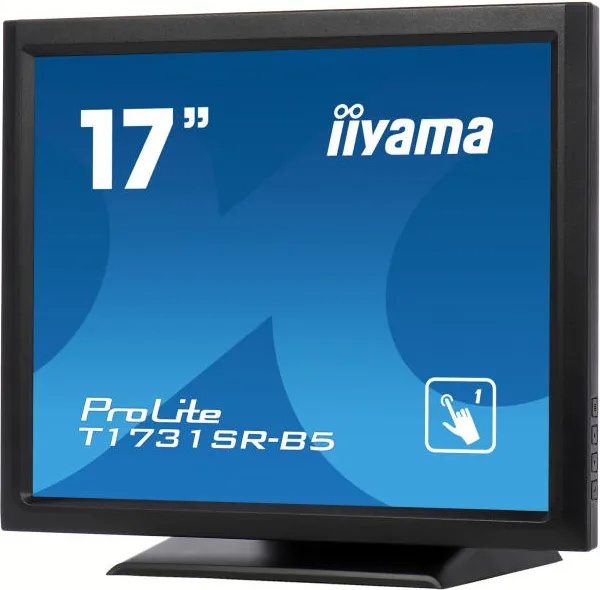

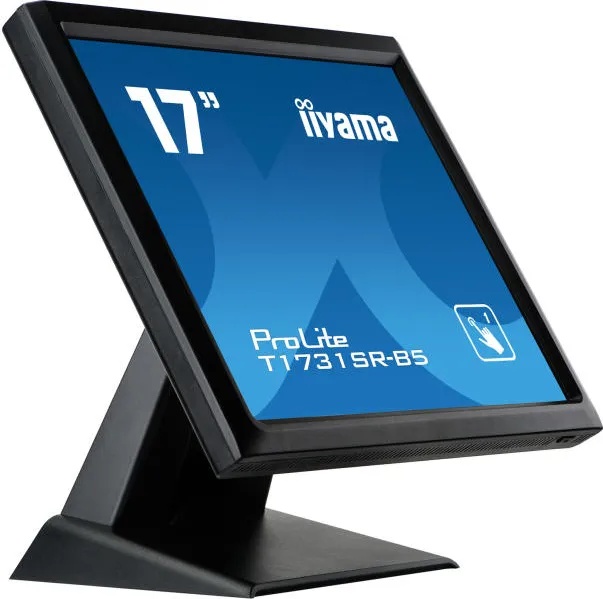

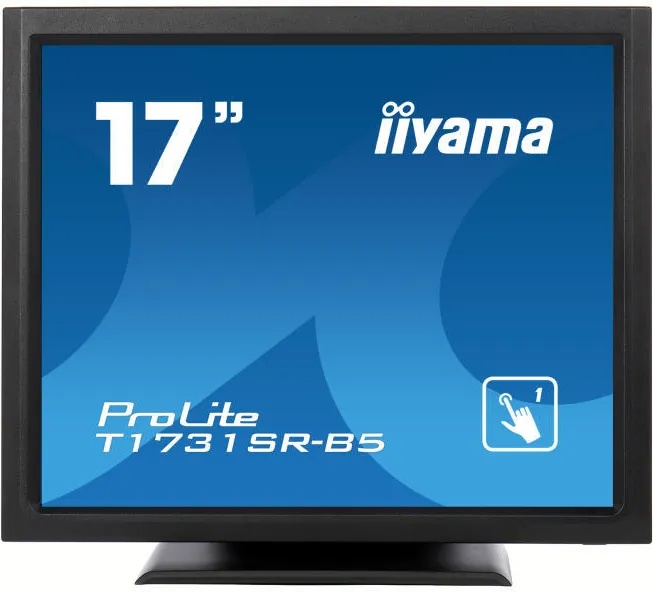

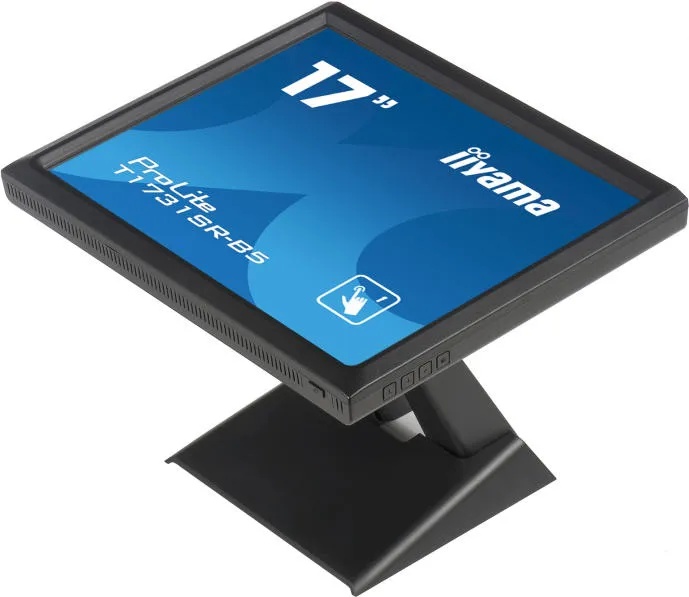

Iiyama PROLITE T1731SR-B5
17" -5-wire resistive touchscreen

ProLite T1731SR-B5 is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (VGA, HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. A solid and steady base supports the touchscreen with an adjustable stand offering full 90-degree angles. The ProLite T1731SR-B5 can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes. Available in black and white.

TOUCH TECHNOLOGY - RESISTIVE
5-wire resistive touchscreens are very durable and can be used in a variety of environments. They are especially recommended for shops, restaurants and industrial purposes.

DISPLAY CHARACTERISTICS
Diagonal 17", 43cm
Panel TN LED
Native resolution 1280 x 1024 (1.3 megapixel)
Aspect ratio 5:4
Brightness 250 cd/m2 typical
Brightness 200 cd/m2 with touch
Static contrast 1000:1 with touch
Light transmittance 80%
Response time 5ms
Viewing zone horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support 16.7mln 8bit (6bit + Hi-FRC)
Horizontal Sync 31 - 80KHz
Vertical Sync 50 - 75Hz
Viewable area W x H 338 x 270mm, 13.3 x 10.6"
Pixel pitch 0.264mm
Bezel colour and finish black, matte

TOUCH
Touch technology serial resistive
Touch points 1
Touch method stylus, finger, glove
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

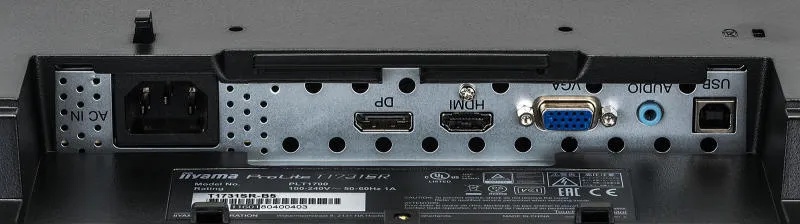

INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Audio output Speakers 2 x 1W
HDCP yes

FEATURES
Impact testing IP54 (front)
OSD key lock yes

GENERAL
OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controls contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute
Convenience Kensington-lock prepared
Plug&Play DDC2B

MECHANICAL

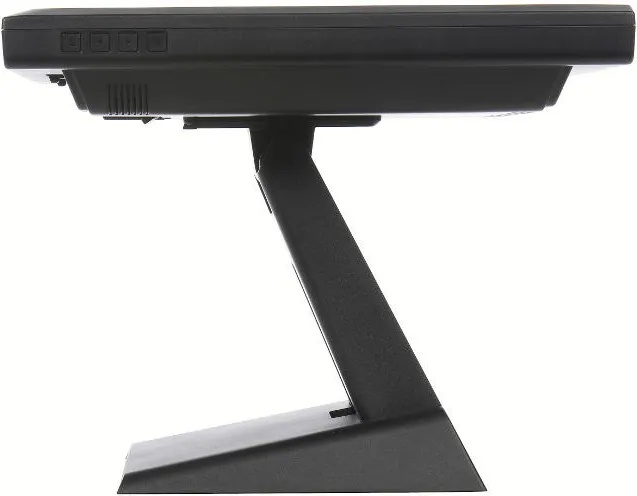

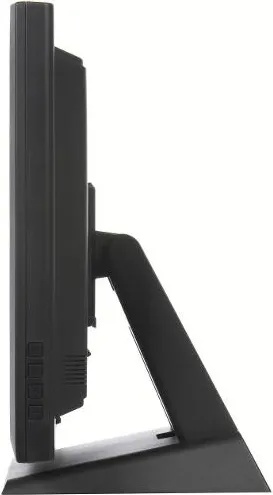

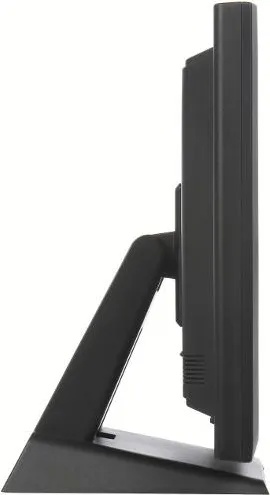

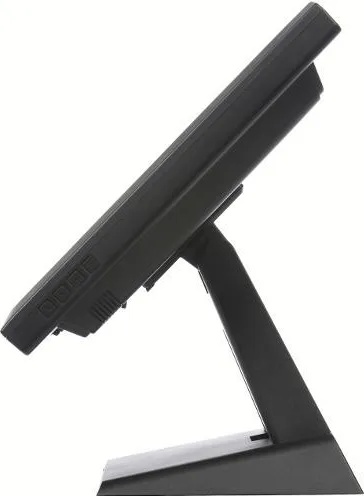

Tilt angle 90° up; 5° down

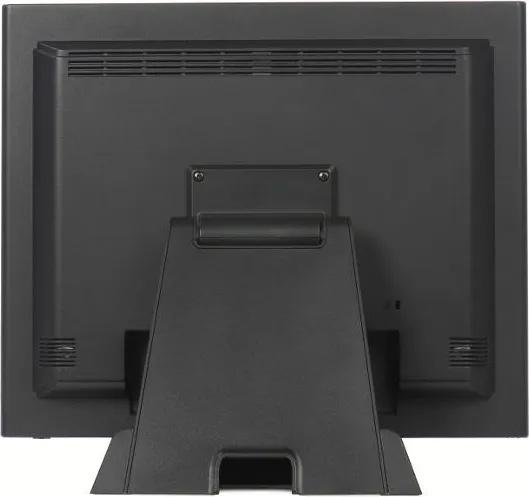

VESA mounting 100 x 100mm
Cable management system yes

ACCESSORIES INCLUDED
Cables power, USB, HDMI, Audio, DP
Guides quick start guide, safety guide
Other Touch Panel Driver Disk (CD-ROM)
Cable cover yes

POWER MANAGEMENT
Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 20W typical, 2W stand by

SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, VCCI, GOST

DIMENSIONS / WEIGHT
Product dimensions W x H x D 387 x 342 x 201mm
Weight (without box) 5.8kg
