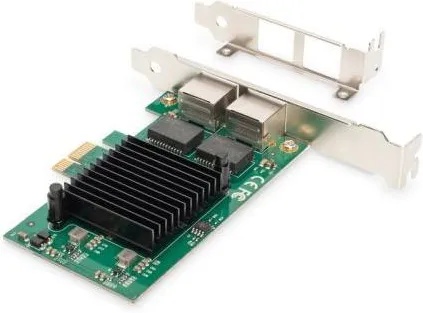

ASSMANN DN-10132 :: DIGITUS Gigabit Ethernet PCI Express мрежова карта, 2 порта


Специфи ация от производителя --> /click to open/
Gigabit Ethernet PCI Express Card, 2-port 32-bit, low profile bracket, Intel chipset Expand your PC with PCIe slot by 2 Gigabit Ethernet ports with 1000 Mbit/s each

• The PCI Express Dual-PORT LAN Card with JL82575EB chipset from Intel for X-1 interfaces can be installed in PCs and servers - the required drivers are included on a CD
• The two RJ-45 ports of the network card comply with the IEEE802.3/u/ab standards and transfer up to 1 Gbps - downwardly compatible to 10/100/1000 MBit/s
• In addition to IPv4 & IPv6 protocols, the card also supports RSS (Receive Side Scaling), VMDq (8VMs), jumbo frames up to 9.5k as well as layer 2 functions such as IEEE802.1q VLAN and IEEE802.3x flow control
• An optional low-profile slot bracket and various configuration options mean that the LAN card is perfect for virtual machines or for setup of routers or firewalls.
• The Ethernet card is supported by the following operating systems: Windows 10, 8.1, 8, 7 / Windows-Server 2019, 2016, 2012, 2008 / VMWare ESXi / FreeBSD / Linux

The DIGITUS® PCI Express Dual Port Gigabit Network Card with integrated Intel chipset offers the option to make two Gigabit ports for a server or a workstation available via a single PCI slot. Each port is fully compatible in accordance with IEEE802.3/u/ab standards and offers a full Gigabit connection. In addition to supporting IPv4 and IPv6 protocols, the card also supports jumbo frames as well as layer 2 functions such as IEEE802.1q VLAN and IEEE802.3x flow control. Its versatile configuration options make the card perfect for using with virtual machines or to set up a router/firewall. The low-profile slot bracket included in delivery also offers the option of integrating the card into compact computer cases in which standard slot brackets cannot be used.

• Data transmission speed: 1 Gbps per port
• Connections: 2 x RJ45
• Chipset: Intel 82575EB (JL82575EB)
• PCIe slot: PCI Express X 1
• PCI Express channels: 1
• Additional low-profile slot, so that the card can be used in computers with little space
• Supports PCI bus power management interfaces rev 1.1 specifications
• Complies with IEEE802.3ab, IEEE802.3u and IEEE802.3 specifications
• Half-Duplex @ 10/100 Mbps, Full-Duplex @ 10/100/1000 Mbps
• Layer 2 functions: IEEE 802.3x Flow Control, IEEE 802.1q VLAN
• Supports auto MDI/MDIX crossover at all speeds
• Supports RSS (Receive Side Scaling)
• Supports IPv4, IPv6 protocols
• Supports jumbo frames up to 9.5K
• Supports UDP/TCP and IP checksum offloading
• Supports Virtual Machine Device Queues (VMDq)
• Supports VMDq - next generation (8VMs)
• Supports statistics for management and remote monitoring
• Driver support for Windows 7, 8, 8.1, 10, Windows Server 2012, Windows Server 2008, Windows Server 2016, FreeBSD, Linux, VMWare ESXi
• Operating temperature: 0 °C ~ 55 °C
• Operating humidity: 10 - 90% (non condensing)
• Storage temperature: -60 °C ~ 140 °C
• Storage humidity: 10 - 80% (non condensing)

EAN: 4016032463139 .                           Мрежови адаптери

Продукт известен още и като DN 10132, DN10132
