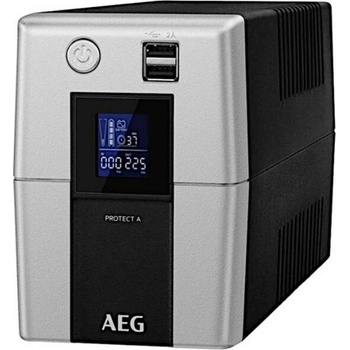

AEG Protect A. 700VA (6000021990)

Protect A is an uninterruptible power supply for the protection of desktop systems and network components. In the event of a power failure, the battery-supported UPS for several minutes bridging time. The system is designed for a simple "Plug & Play"-installation. Protect A is part of the series of intelligent and energy-efficient 1-phase USVen from AEG Power Solutions. The UPS has an LCD display for showing information and two USB connections for the charging of smartphones and tablets.

Typical Applications
Standard IT systems (PCs, workstations, sale terminals, etc. )
Network and telecommunications peripheral devices
Industry 4.0-data logging
Internet of Things (IoT), devices
Television, Satellite Receiver and multimedia systems

This text is machine translated.

Highlights & Details

• Line-interactive VI technology
• Automatic Voltage Regulator (AVR) protects against voltage drops and surges
• Double mains filtering of tips and transient voltages
• "Plug & Play"-installation with power and output cables included in the scope of delivery
• Sealed, maintenance-free lead-acid battery with deep discharge protection
• Low-noise operation (fanless) and automatic restart if a return of the network

Facts

• Easy-to-use LCD display with information display on the front side
• Percent bar and graphical display of measured values and the rest of the bridging time
• On and off switch, cancel the audible alarm
• Two USB ports (5V/2A) for charging of smartphones and tablets
• 4 x IEC320-outputs with emergency power supply and overvoltage protection
• Surge protection for RJ45 Gigabit Ethernet (1000 Mbit/s)
• RS232 and USB-HID connections (software free detection)

 SpecificationsProduct nameAEG PROTECT A 700 230V UPSProduct typeUPS for desktop PCsApparent power (VA)700 VAEffective power420 WRuntime (50 % load, max. )8.0 min. Runtime (70 % load, max. )3.0 min. Runtime (100 % load, max. )1.0 min. Chassis typeTowerDimensions (W x H x D)100 x 143 x 290 mmWeight5.2 kg
