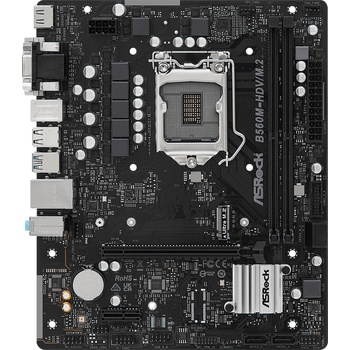

ASRock B560M-HDV/M.2

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3 Снимка 4
ASROCK B560M-HDV/M. 2 /LGA1200

CPU's supported: - Supports 10th Gen Intel® Core Processors and 11th Gen Intel® Core Processors (LGA1200); - 5 Power Phase design; - Supports Intel® Turbo Boost Max 3.0 Technology
Memory type: - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - 11th Gen Intel® Core Processors support DDR4 non-ECC, un-buffered memory up to 4000+(OC)*; - 10th Gen Intel® Core Processors support DDR4 non-ECC, un-buffered memory up to 3600+(OC)*; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 64GB; - Supports Intel® Extreme Memory Profile (XMP) 2.0
Chipset: - Intel® B560
Graphics: - 11th Gen Intel® Core Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core Processors support Gen 9 Graphics; - Three graphics output options: D-Sub, DVI-D and HDMI**; - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel® Core Processors; - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel® Core Processors; - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required); - Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports; - Supports HDCP 2.2 with DVI-D and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core Processors)
Expansion Slots: 11th Gen Intel® Core Processors; - 1 x PCI Express 4.0 x16 Slot*; 10th Gen Intel® Core Processors; - 1 x PCI Express 3.0 x16 Slot*; - 1 x PCI Express 3.0 x1 Slot
Storage: - 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*; - 1 x Ultra M. 2 Socket (M2_1), supports M Key type 2260/2280 M. 2 SATA3 6.0 Gb/s module and M. 2 PCI Express module up to Gen3 x4 (32 Gb/s)**
I/O: - 1 x PS/2 Keyboard Port; - 1 x PS/2 Mouse Port; - 1 x D-Sub Port; - 1 x DVI-D Port; - 1 x HDMI Port; - 4 x USB 2.0 Ports (Supports ESD Protection); - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors: - 1 x COM Port Header; - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 1 x Chassis Fan Connector (4-pin)**; - 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Audio: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Supports Surge Protection
LAN: - Gigabit LAN 10/100/1000 Mb/s; - Giga PHY Intel® I219V; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
BIOS: - 128Mb AMI UEFI Legal BIOS with multilingual GUI support; - ACPI 6.0 Compliant wake up events; - SMBIOS 2.7 Support; - CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment
Form Factor: - Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm; - Solid Capacitor design
OS: - Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty: 36 Months



.
