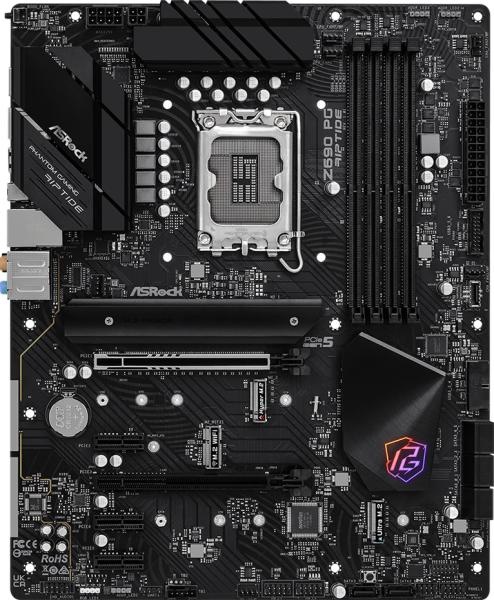

ASRock Z690 PG Riptide

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3 Снимка 4 Снимка 5 Снимка 6
Дънна платка ASRock Z690 PG Riptide, LGA1700, ATX, Polychrome RGB

CPU Socket: 1700
Чипсет: Intel Z690
Поддържани процесори: Supports 13th Gen & 12th Gen Intel® Core Processors (LGA1700)
Форм фактор: ATX
Поддърж на памет: DDR4
Максима лен капацитет RAM памет: 128 GB
Слотове памет: 4
Честота памет: Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)
Поддръжк на Dualchannel: Да
Графичн а карта: Intel® Xe Graphics Architecture (Gen 12)
Вградено аудио: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Вградено аудио: Supports Surge Protection
Вградено аудио: Nahimic Audio
Вградено аудио: Gold Audio Jacks
Вграден LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Вграден LAN: Killer E3100G
Вграден LAN: Supports Killer LAN Software
Слотoве PCI-E x16: 2
Слотoве PCI-E x1: 3
Интерфей Serial ATA: 8 x SATA3 6.0 Gb/s
М2 слот: 1 x Hyper M. 2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
М2 слот: 1 x Hyper M. 2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
М2 слот: 1 x M. 2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
М2 слот: 1 x Ultra M. 2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
Поддръжка на RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Поддръжка на RAID: Supports RAID 0, RAID 1 and RAID 5 for M. 2 NVMe storage devices
Конектор захранване: 1 x 24 pin ATX Power Connector
Конектор захранване: 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
Конектор захранване: 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
Видео слот: PCI Express
Мулти GPU технология: AMD CrossFireX
Свързано ст: 3 x Antenna Mounting Points; 1 x PS/2 Mouse/Keyboard Port; 1 x HDMI Port; 1 x Optical SPDIF Out Port; 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection); 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver) (Supports ESD Protection); 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)*; 2 x USB 2.0 Ports (Supports ESD Protection); 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); 1 x BIOS Flashback Button; HD Audio Jacks
USB Type-C: 1
USB 3.2: 4
USB 2.0: 2
Размери: 30.5 cm x 24.4 cm
Поддържани технологии: Software - ASRock Motherboard Utility (Phantom Gaming Tuning); Killer Control Center; ASRock Polychrome SYNC
Комплектът включва: Quick Installation Guide, Support CD, I/O Shield; 2 x SATA Data Cables; 1 x Graphics Card Holder; 4 x Screws for M. 2 Sockets; 1 x Standoff for M. 2 Socket
Други: 256Mb AMI UEFI Legal BIOS with multilingual GUI support

Дънна платка ASRock Z690 Extreme, LGA1700, ATX, Polychrome RGB

Z690 PG Riptide

• Supports 13th Gen & 12th Gen Intel® Core Processors (LGA1700)
• 13 Phase Dr. MOS Power Design
• Supports DDR4 4800MHz (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1
• 1 M. 2 Key-E for WiFi
• Graphics Output Options: HDMI
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 8 SATA3
• 2 Hyper M. 2 (PCIe Gen4 x4)
• 1 Ultra M. 2 (PCIe Gen3 x4 & SATA3)
• 1 USB 3.2 Gen2x2 Rear Type-C
• 2 USB 3.2 Gen2 (Rear)
• 1 USB 3.2 Gen1 Front Type-C
• 6 USB 3.2 Gen1 (2 Rear, 4 Front)
• Killer E3100 2.5G LAN
• Lightning Gaming Ports
• ASRock Graphics Card Holder
