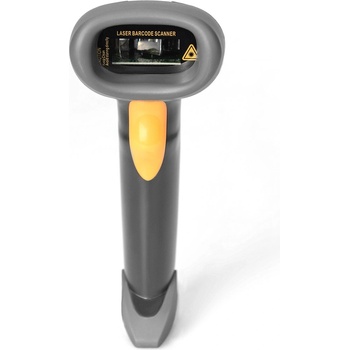

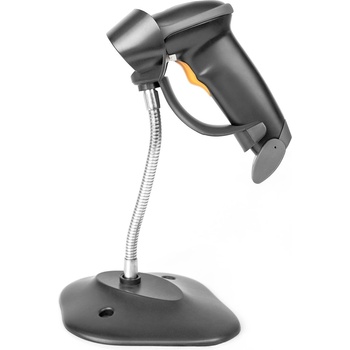

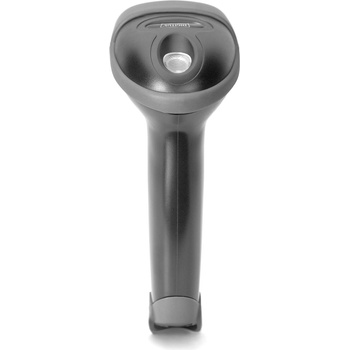

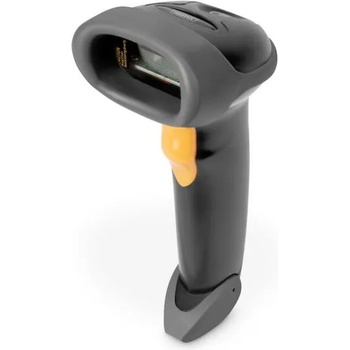

ASSMANN DA-81001

1D Barcode Scanner, bi-directional 200 scans/sec, 2 m USB-RJ45 Cable
The DIGITUS® 1D Barcode Scanner operates reliably and economically. Its
ergonomic design makes it easy to handle, an excellent choice for a wide
variety of working environments such as retail, logistics and commerce of
all kinds. With 200 scans per second, this bidirectional scanner delivers
ideal results. The manual scanner is suitable for high-resolution barcodes
with up to 90 characters. Each scanning process is confirmed with visual
and auditory signals and the scanner supports the most popular code
types. Wide scan angles ensure even faster barcode detection. The
scanner is dust-protected and water-resistant, impacts are absorbed by
the silicon cover to protect against damage.
High-resolution hand scanner for reliable use in retail and logistics
1D Scan
Power consumption: 3.3 -5 V DC, 100 mA (1 μA while idle)
Power supply: USB
Scan type: bidirectional
Sensor: Linear
CPU: ARM 32-Bit Cortex
Interface: USB
Light source: 650 nm visual laser diode
Trigger: Pushbutton
Number of scans: 200 per second
Error rate in bits: 1/5 million, 1/20 million
Resolution: ≥3.3mil
Scan width: 30 cm
Depth of field: 3.3 mil @ 2 mm-100 mm, 10 mil @2 mm-350 m; 15.6 mil
@ 5 mm - 600 mm; 35 mil @ 10 mm-1000 mm
Scan angle: Angle of rotation ±30°, angle of inclination ± 45°, angle
of declination ± 60°
Decoding types: EAN-8, EAN-13, EAN-128, Code 39, Code 93, UPC,
GS1 Databar, GS1-128, ISSN, MSI, Industrial 2 of 5, JAN-8, JAN-13,
Code 32, IATA, ITF, ITF-14, Matrix 2 of 5, ITF-6, Rss limited, Rss
extended, Industrial 25, Code 128, Codabar, Big Code
Button cycle: 500,000 times
Laser cycle: 10,000 times
Compatible with Windows/Android/iOS/Mac/Linux systems
Material: ABS + PC
Protection type: IP54
Operating temperature: -20 °C to +50 °C
Storage temperature: -40 °C to +70 °C

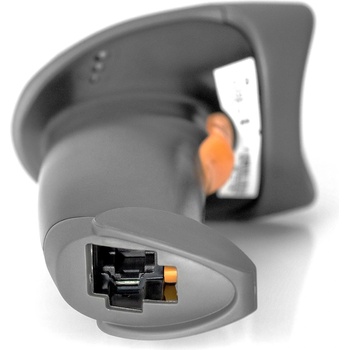

Cable: 2 m (USB - RJ45)
Dimensions (HxWxD): 16.5 x 6.3 x 8.7 cm
Weight: 110 g
Color: Black/gray
