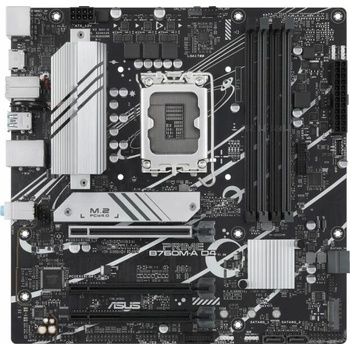

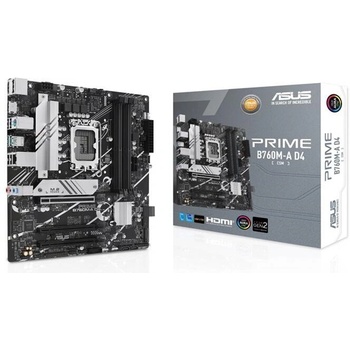

ASUS PRIME B760M-A-CSM DDR4

Технически детайли

Vendor_url:https://www. asus. com/motherboards-components/motherboards /prime/prime-b760m-a-d4-csm/techspec/
Graphics:1 x DisplayPort**; 2 x HDMI® ports***
Chipset:Intel® B760 Chipset
Expansion slots:Intel® 13th & 12th Gen Processors; 1 x PCIe 4.0 x16 slot; Intel® B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x16 slot (supports x1 mode)
Storage:Total supports 2 x M. 2 slots and 4x SATA 6Gb/s ports*; Intel® 13th & 12th Gen Processors; M. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset; M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports
Memory type:4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600 (OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/320 0/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II
Rear panel I/O:2 x USB 3.2 Gen 2 ports (2 x Type-A ); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 2 x HDMI® ports; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port
Connectors:1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 2 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 2 x M. 2 slots (Key M); 4 x SATA 6Gb/s ports; 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C®); 2 x USB 2.0 headers support 4 additional USB 2.0 ports; 1 x USB 2.0 header supports 1 additional USB 2.0 port; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x LPT header; 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function
Audio:Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
Lan:1 x Realtek 2.5Gb Ethernet
BIOS:128 Mb Flash ROM, UEFI AMI BIOS
Form factor:mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
OS:Windows® 11, Windows® 10 64-bit
Разширено търсене:ASUS Z760 4xDDR4 4xSATA3 RAID 2xHDMI DP2xM2 GLAN3xPCIEx16
