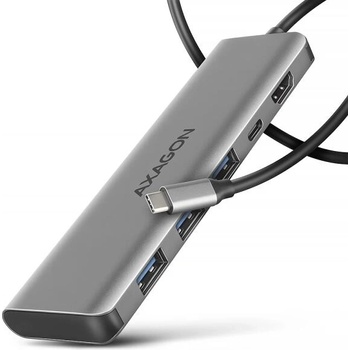

AXAGON HMC-5H

The USB hub offers three 5Gbps USB outputs with standard USB-A connectors. The hub can also handle the permanent connection of multiple external drives at the same time. Transfer rate up to 5Gb/s thanks to the fast USB 3.2 Gen 1 interface. The hub can also charge mobile phones and tablets connected to the hub's USB ports with a current of up to 1.5A/5V. From the hub, you can easily charge e. g. Android smartphone, Apple iPhone, Apple iPad etc.

The USB-C connector is reserved only for charging of phone or laptops using Power Delivery 3.0 technology with a power of up to 100W. Connect a suitable USB-C Power Delivery charger into the hub and connect the hub to a laptop that supports Power Delivery. This will also free up one USB-C port on your laptop.

HDMI output provides high quality image up to 4K/30Hz Ultra HD resolution and supports multi-channel audio transmission.

For video outputs to work properly, the laptop must have a USB-C port with DisplayPort Alternate Mode (DP Alt Mode) support or a Thunderbolt 3 port, Thunderbolt 4 and above.

Input (laptop connection):
USB 5Gbps (USB 3.2 Gen 1 / USB 3.0), USB-C female connector.
Compatible with USB 3.2 Gen 2, USB4 and Thunderbolt 3/4.

Input (power supply):
USB Power Delivery 3.0 100W (only for charging), USB-C female connector.
Charging of the notebook from the power adapter via USB-C hub.
PD power must be supported by both the laptop (phone) and the wall charger.

Specifications

Input:
interface
USB 3.2 Gen 1

interface
USB-C (DisplayPort Alternate Mode)

connector
USB Type C male (on the cable)

cable
100 cm

Output:
interface
HDMI

interface
USB 3.2 Gen 1

output power
100W - 20V/5A

connector
3x USB-A

connector
HDMI A

connector
Power Delivery 3.0

Supported features:
max. resolution
4096 x 2160 @30Hz 4K x 2K

sound transmission
yes

Plug and Play
yes

Hot Plug
yes

Other features:
design
aluminum

Power supply:
on the bus
USB bus power

through power adapter
Power Delivery
