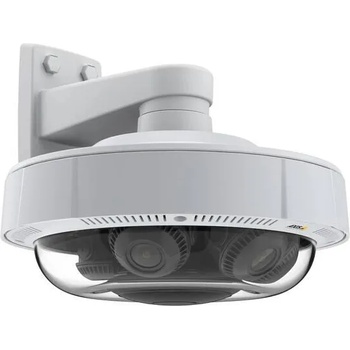

Axis Communications P3727 (02218-001)

 Axis P3727-PLE

AXIS P3717-PLE lets you easily cover four different areas with a single camera, around the clock and even in challenging lighting. You'll be able to count on both excellent overviews and detailed coverage thanks to the brilliant design of this cost-effective solution. AXIS P3717-PLE is perfect for large indoor and outdoor areas like stores, shopping malls, warehouses, parking lots and lobbies. It's also ideal at hallway, aisle and road intersections and at the outer corners of buildings.

Product Features

• Wide areas and great images - day and night

  AXIS P3717-PLE offers four channels with 2MP per channel, at a frame rate of 30 fps. It features Lightfinder for color images recorded in near darkness. And Forensic WDR for clarity when there are both dark and light areas in the scene. Plus, AXIS P3717-PLE has 360° IR illumination with individually controllable LEDs and an automatic IR cut filter. So you'll enjoy clear, reflection-free footage in low light or complete darkness and undistorted color during the day.


• One camera for the coverage of four

  The beauty of AXIS P3717-PLE lies in its design, with four varifocal camera heads that can be moved and rotated to capture scenes in various directions in wide or zoomed-in views. AXIS P3717-PLE delivers a 360° overview or a combination of overviews and close-ups depending on your needs. In addition, the camera's sensors can be twisted, allowing two camera heads to be positioned closer together, so one can take the wide view and the other can zoom in on the same target. AXIS P3717-PLE is compact and discreet. And recessed installation is possible. Plus, the network camera is also weather-resistant thanks to an integrated weather shield with an IP66/IP67 rating.

General

Device Type
Network surveillance camera

Audio Support
Yes: two-way audio capability

Form Factor
Dome

Connectivity Technology
Wired

Width
25.5 cm

Depth
25.5 cm

Height
9.15 cm

Weight
2 kg

Camera

Type
Colour - Day&Night - fixed

Digital Video Format
MJPEG, H. 264, MPEG-4 AVC

Max Digital Video Resolution
1920 x 1080

Motion Detection
Yes

Video Modes
1080p

Exposure Range
2 sec - 1/32500 sec

Minimum Illumination
0.17 lux - colour - F1.8 - 50 IRE

0.04 lux - B&W - F1.8 - 50 IRE

0 lux - IR

Infrared LEDs
Yes

Infrared Distance
15 m

Video Capture
1920 x 1080 @ 30 fps

RAM
1 GB

Flash Memory
512 MB

Features
Sharpness control, white balance, saturation control, brightness control, contrast control, Privacy Mask Function, Event Notification, image overlay, exposure control, infrared-cut filter, Forensic WDR, exposure zone

Image Sensor

Type
8 MP RGB CMOS 4 x 1/2.8"

Lens Construction

Type
Vari-focal

Optical Zoom
2 x

Focal Length
3 mm - 6 mm

Lens Iris
F/1.8-2.6

Focus Adjustment
Motorised

Horizontal Field of View (degree)
49 - 96

Vertical Field of View (degree)
27 - 53

Diagonal Field of View (degree)
55 - 113

Panning

Range (degree)
-90 to +90

Tilting

Range (degree)
25 to 95

Interfaces

Network Interface
Ethernet 10Base-T/100Base-TX

Network Protocols
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP

Expansion / Connectivity

Ports
LAN/power - RJ-45

Supported Memory Cards
microSD Card, microSDHC Card, microSDXC Card

Miscellaneous

Included Accessories
Screw bit T20

Compliant Standards
EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IP67, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, RCM, IK09, IEC 62471, IEC EN60529, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, IEEE 802.3at, KCC KN35, IEC/EN 62262, IEC/EN/UL 62368-1, IEEE 802.1x

Power

Power Requirements
PoE Plus Class 4

Power Device
17 Watt
