BOYA BY-M1

Микрофон брошка BOYA BY-M1, 3.5mm жак

BY-M1

Кратки характеристики:

Клип-он микрофон за смартфони, DSLR, видеокамери,  аудио записващи устройства, компютри и др.

Тип: Електретен микрофон

Polar pattern:Omini-directional

Честотен диапазон: 65Hz-18KHz

Signal/Noise: 74dB

Извод: стерео мини извод (φ3,5 мм)

Размери:18 х 8.3 х 8.3 мм

Тегло: 20.5 грама

Работи с батерия LR44



BY-M1

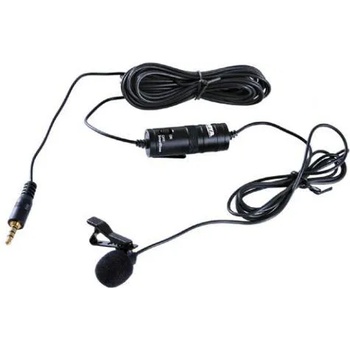

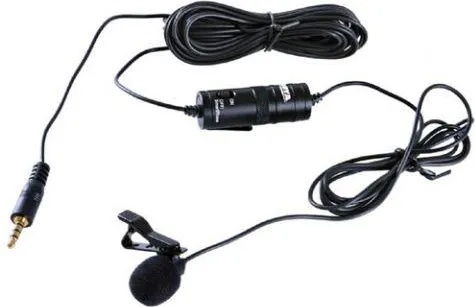

Omni Directional Lavalier Microphone

Product Highlights:



Omnidirectional polar pattern.

Flat frequency response.

High quality sound.

Work with cameras, smartphones and computers.

One button switch between camera and smartphone mode.

6m(20') length cable.

Foam windscreen, lapel clip, 1/4 adapter and LR44 battery included.



The BOYA BY-M1 is an omnidirectional lavalier microphone ideal for vlog, presentation, podcasting, live streaming and much more.



Custom Omnidirectional Capsule For High Quality Audio Pickup

Designed with a custom omnidirectional signal capsule, it captures broadcast-quality sound from a 360-degree range and delivers it to your recording device via its 6m(20’) shielded cable. With the improved sensitivity, signal-to-noise and a flat frequency response, BY-M1 allows you to record every last audio detail with lower self-noise.



Two Recording Modes For Different Using Scenarios

Featuring a 3.5mm 4-pole TRRS output connector, you can connect BY-M1 to your camera or camcorder under camera mode, and also connect it to your smartphone or PC when switch to OFF/Smartphone mode.



Every Necessary Accessory Is Included

In terms of accessories, you will find lapel clip, foam windscreen all in pack, and a LR44 battery for using camera mode,   a 1/4" audio adapter for compatible further device, and a carrying pouch to provide secure protection.



 Transducer:
 Electret condenser

 Polar Pattern:
 Omni-directional

 Frequency range:
 65 Hz ~ 18 KHz

 Signal/Noise:
 78 dB SPL

 Sensitivity:
 -30 dB +/- 3 dB / 0 dB=1V/Pa, 1 kHz

 Output impedance:
 1000 Ohm or less

 Battery type:
 LR44 included (compatible with LR44, 357, and SR44)

 Connector:
 3.5mm (1/8) 4-pole gold plug

 Dimensions:
  Microphone: 18.00mmH x 8.30mmW x 8.30mmD

 Cable: 6.0m

 Weight:
  Microphone: 2.5g

 Power Module: 18g
