OVERVIEW

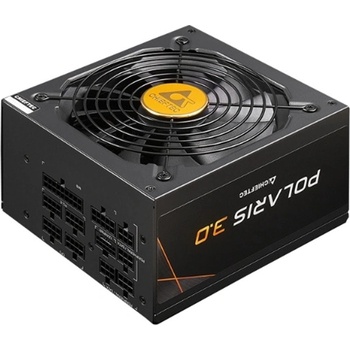

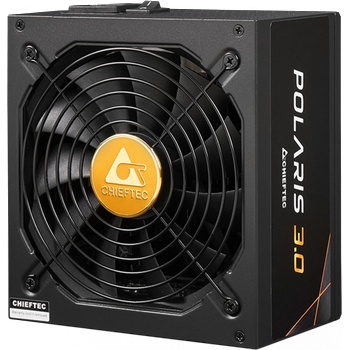

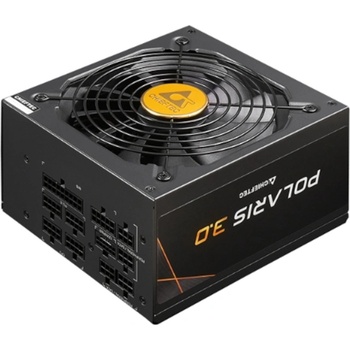

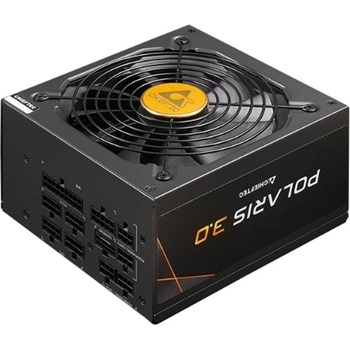

The CHIEFTEC Polaris 3.0 series is designed to Intel’s ATX 3.0 standard and supports PCIe GEN 5 with 80 PLUS® GOLD certified efficiency, promising exceptional performance. Polaris 3.0 features state-of-the-art technical design including LLC half-bridge converter with DC- to-DC technology, as well as Japanese main capacitors to achieve low ripple and tight voltage regulation. The Polaris 3.0 135mm FDB silent fan optimizes the balance between cooling and noise with excellent durability. Fully modular cable management ensures a clean and convenient build inside any system.



Tech specs

Weight  (Net/Gross)
3.00kg / 3.34kg

AC Input
100-240V / 15-8A

Frequency
50 - 60Hz

+5V
22A

+3,3V
22A

+5V & +3,3V combined
120W

+12V1
87.5A

+12V2
-

+12V1, +12V2 combined
1050W

P. F.
>0.9

-12V
0.3A / 3.6W

+5VSB
3.0A / 15W

Maximum Power
1050W

Connectors

20+4 PIN ATX
1

8 PIN EPS (4+4)
2

8 PIN PCIe (6+2)
4

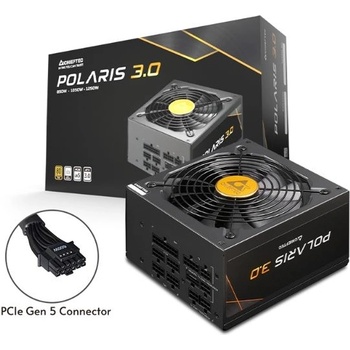

16 PIN PCIe GEN5
1

SATA
12

MOLEX
4

Cable length

20+4 PIN ATX
650

8 PIN EPS (4+4)
2 x 650

8 PIN PCIe (6+2)
2 x 600/100

16 PIN PCIe GEN5
600

SATA
3 x 550/100/100/100

MOLEX
550/100/100/100

Features

ATX12V Version
ATX 12V 3.0

Efficiency
80Plus Gold

Dimension (DxWxH)
160 mm x 150 mm x 86 mm

PFC
Active PFC (0.9)

Fan

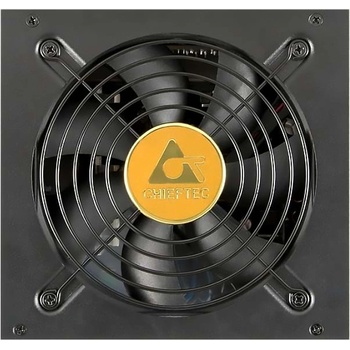

135mm FDB fan

Security
AFC (Automatic Fan speed Control)

OPP (Overload protection)

OTP (Over Temperature Protection)

OVP (Overvoltage protection)

SCP (Short-circuit protection)

SIP (Surge & Inrush Protection)

UVP (Under Voltage protection)

OCP (Over-Current Protection)
