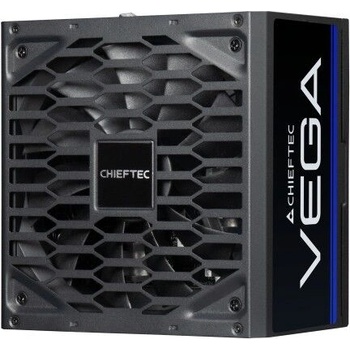

CHIEFTEC Vega PPG-850-S

The CHIEFTEC VEGA Series power supply is built to Intel’s ATX 12V 3.1 standard and supports PCIe GEN5 with 80PLUS Gold certified efficiency. It prioritizes a competitive price-to-performance ratio up to 850W while maintaining the trusted Chieftec quality.


The Vega Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability. The equipped extra-long native black cables make it suitable for mainstream gamers to build their system, even in larger PC cases.


Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels. The Vega Series is your trusted reliable choice for all computing needs incorporating all necessary modern protection and safety features.



Specifications



AC Input 100-240V~ / 12-6AFrequency 50 - 60Hz+5V 20A+3,3V 20A+5V & +3,3V combined 100W+12V1 70.8A+12V2 -+12V1, +12V2 combined 850WP. F. >0.9-12V 0.3A / 3.6W+5VSB 3.0A / 15WMaximum Power 850W20+4 PIN ATX 1 (600mm)8 PIN EPS (8/4+4) 1/1 (650/150mm)8 PIN PCIe (6+2) 4 (2 x 600/150mm)16 PIN PCIe GEN5 1 (600mm)SATA 6 (2 x 400/150/150mm)MOLEX 3 (400/150/150mm)ATX12V Version ATX 12V 3.1Efficiency 80Plus GoldDimension (DxWxH) 150 mm x 150 mm x 85 mmPFC Active PFC (0.9)Fan 135mm FDB fanSecurity AFC (Automatic Fan Speed Control)
OPP (Overload Protection)
OTP (Over Temperature Protection)
OVP (Overvoltage Protection)
SCP (Short-Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
OCP (Over-Current Protection)
