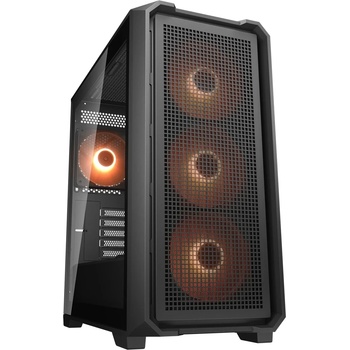

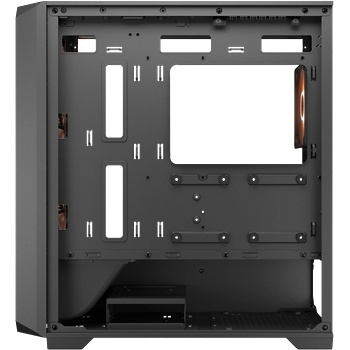

COUGAR MX600 Mini V2 Pro black (CGR-2TC9B-PRO)

MX600 Mini V2 Pro

Maximum Cool. Minimum Size.

Featuring a square-perforated front panel, an airflow-guiding ramp, and support for up to 360mm water cooling, the MX600 Mini V2 Pro packs formidable cooling into a space-efficient small form factor.

• Square-perforated front panels ensure maximum, optimised airflow.
• Airflow ramp precisely guides air current to cool components.
• Preinstalled ARGB PWM fans: 3x120mm in front and 1x120mm to the rear. Maximum capacity of 6 fans.
• Water cooling support: up to 360mm in front OR up to 280mm on top.
• Accommodates 360mm GPUs.
• USB 3.2 Gen 2×1 Type-C (10 Gbps) x1, USB 3.0 Type-A x 2, 4 pole headset audio jack for fast, versatile device connectivity.
• Houses 1 x 3.5 HDD drives and 2+1 2.5 SSD drives. (converted from 3.5 drive bay)



Optimized Airflow

The MX600 Mini V2 Pro is inoculated against escalating temperatures with a square-perforated front panel and precision-guided cooling.



Undiminished Cooling Capacity

The impressive cooling capability of the MX600 Mini V2 Pro is entirely undiminished by its small size. With preinstalled 3 x 120mm ARGB PWM fans at the front, 1 x 120mm ARGB PWM fan at the rear and a maximum capacity of 6 fans, the MX600 Mini V2 Pro keeps its cool at peak operation.



Specifications:< /strong>

Case Size Mini TowerMotherboard Support Mini ITX / Micro ATXDimensions (WxHxD) 210 x 450 x 415 (mm)
8.3 x 17.7 x 16.3 (in)I/O Panel USB 3.2 Gen 2x1 (10Gbps) Type-C x 1, USB 3.0 Type-A x 2,
4 Pole Headset Audio Jack, RGB Button3.5" Drive Bay 12.5" Drive Bay 2+1 (converted from 3.5" drive bays)Expansion Slots 5Cooling Fan Support Front 120mm x 3 / 140mm x 2Top 120mm x 2 / 140mm x 2Rear 120mm x 1Pre-installed Fans Front 120mm ARGB PWM fan x 3Rear 120mm ARGB PWM fan x 1Speed 120mm ARGB PWM: 600-1200 ± 10% RPMConnector 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)Maximun Number of Fans 6Water Cooling Support Front * 360mm / 280mm / 240mm / 140mm / 120mmTop * 280mm / 240mm / 140mm / 120mmRear 120mmRGB Hub Sync with M/B YesMax. Graphics Card Length 360 (mm) / 14.2 (in)Max. CPU Cooler Height 165(mm) / 6.5(in)Max. PSU Length 140(mm) / 5.5(in)
