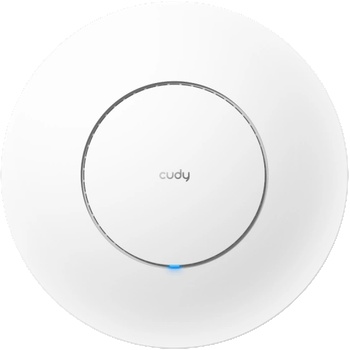

Cudy AP3600



Wired. Powered. Reliable.

Shielded 2.5 Gbps Ethernet Port

Turbocharge your network bandwidth with a shielded 2.5G Ethernet port, delivering high-speed, interference-resistant connections for seamless multi-device streaming. Plus, a Gigabit Ethernet port supports PoE Out to power connected devices with ease.



Seamless Wi-Fi for Everywhere

Campus

Hospitality

Conference Center

Shopping Mall



Advanced Business Features

Band Steering

Assign devices to less-congested bands, optimizing the system performance.

Auto Channel Selection

Avoid signal interruptions with nearby access points.

Auto Mesh Optimization

Form mesh backhaul via less congested routes automatically.

OpenWiFi

Built on OpenWiFi software for building a more inclusive and customizable AP system.



Specifications



Hardware Specs

CPU CPU Details 2.0 GHz Quad-Core, ARM Cortex-A7Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND  DDR/RAM 512 MB (4 Gbit) DDR3LWireless 5 GHz Wi-Fi Speed 2882 Mbps  2.4 GHz Wi-Fi Speed 688 Mbps  5 GHz Wi-Fi Streams 2 Spatial Streams  2.4 GHz Wi-Fi Streams 2 Spatial Streams  Wi-Fi Antennas 4× Internal  FEM or PA/LNA

• 5 GHz: 2× Internal
• 2.4 GHz: 2× Internal

  Beamforming    Range Performance Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.   Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')Interfaces 2.5G RJ45 Ports 1  Gigabit RJ45 Ports 1  Ethernet Notes Accepts PoE powering  LED System  Physical Buttons Reset Button  Power Interfaces

• DC Jack
• PoE via Ethernet Port

Power Power Methods

• DC
• Passive PoE
• 802.3at/af PoE

  Power Input

• DC: 12V⎓1A
• Passive PoE: 48-57V⎓
• PoE: 802.3at/af

  Power Adapter In the Box AP3600 | No adapter in the box
AP3600_P | PoE adapter in the box:
Input: 100-240V~, 50/60Hz
Output: 48V⎓ Passive PoE  Max Power Consumption (W) 10WReliability Advanced Hardware Watchdog  EMC ESD: Contact: 4kV; Air: 8kV  Environment

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certifications FCC, CEMechanical Installation

• Wall-mount
• Ceiling-mount

  Dimension 231.9×231.9×57.1 mm
9.13×9.13×2.25 inches  Product Weight

• Adapter Not Included | EU: 435.0 g (15.34 oz. )
• EU: 435.0 g (15.34 oz. )
• With PoE Adapter (_P) | EU: 435.0 g (15.34 oz. )

Compatibility Compatible Products C200P 1.0  Compatible Accessories POE400H 1.0, POE200H 1.0, POE52-30W 1.0, POE48-18W 1.0  Note Choose with caution: some suggested models may not deliver speeds that match the device’s maximum capability.



Software Specs

Wireless Wi-Fi Standards Wi-Fi 7  Max Wi-Fi Modulation 4K-QAM  Wi-Fi Efficiency

• MLO
• MRU
• Puncturi ng
• OFDMA
• MU-MIMO
• BSS Color

  Max Capacity 512  Recommended Client Upper Limit 200  Max Wi-Fi Channel Width 160 MHz  Wi-Fi Security WPA/WPA2/WPA3  Multi-SSID (Max Number) 8 SSIDs (Up to 4 SSIDs on each band), VLAN Support  WPS  General Operation Modes

• Wi-Fi Router
• Access Point

  Mesh Cudy Mesh  Mesh Backhaul

• Wireless Backhaul
• Wired Backhaul

  Multi-Band Backhaul    WAN Mode

• DHCP
• Static IP
• PPPOE
• PPTP
• L2 TP

Management Multi-AP Management Via Cudy AP Controller  All Devices Management

• Wi-Fi Time Schedule
• MAC Filter
• IP/MAC Binding

  Per-Devices Management

• Internet On/Off
• VPN On/Off
• Online Time Schedule
• Device Rename

  Content Management

• Domain Filter
• IP Filter

Network QoS Per-User Rate Limiting  DHCP

• Address Reservation
• DHCP Client List
• Server

  IP Versions IPv4/IPv6  IPv6 Protocols

• Relay
• Dynamic (SLAAC/DHCPv6)
• Static (Fixed IP)
• Passthrough
• 464XLAT< /li>
• MAP-E
• DS-Lite
