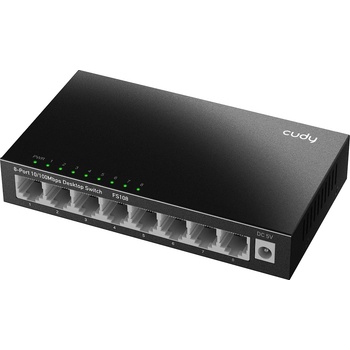

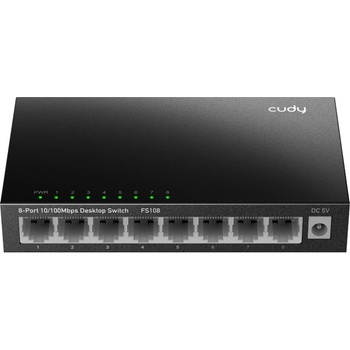

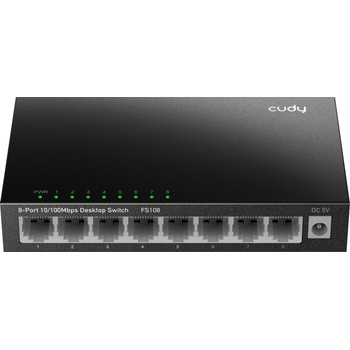

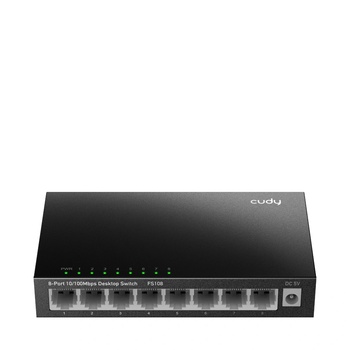

Cudy FS108

Cudy FS108

A 8-FE switch with meta casing ideal for wired network expansion in home and office environments.

• 5× Fast Ethernet Ports
• Max 1W, Idle 0.35W
• 86.5×53×23 mm (3.41×2.09×0.91″)
• Desktop, Wall-Mount
• Metal Casing
• 201 g (7.09 oz. )



Specs:



Interfaces 10/100 Mbps RJ45 Ports 8  LED

• Power
• Link/ACT of Each Ethernet Port

  Power Input DC JackPerformance Copper Speed and Distance

• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps

  MAC Address Table 512  Max Switching Capacity 1.6 Gbps  Max Forwarding Rate 1.1904 Mpps  Packet Buffer 448 KbitPower Basic Power Saving True  Power Methods DC  DC 5V 0.55A  Max Power Consumption 1W  Idle Power Consumption 0.25WSwitching 802.3 Protocols

• 802.3i 10BASE-T
• 802.3u 100BASE-T

Reliability Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensingMechanical Dimension 138×78×25 mm
5.43×3.07×0.98 inches  Product Weight 200 g (7.05 oz. )  Casing Material Metal  Installation

• Desktop
• Wall-mount
