Cudy GS108U

Cudy GS108U





No Sockets Nearby? No Worries

No power sockets nearby? Use the USB port on your PC/TV/router/printer to power the switch and expand the connection with ease.



A Moving Network Hub

Do maintenance and troubleshooting more easily with a power bank-powered switch. It can operate for a full day with a 10,000 mAh power bank.



Extra Transmission Distance

170 meters of Gigabit transmission adding 70% longer distance compared to a standard switch, simplifies wiring for larger premises.



Saves Power

Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.

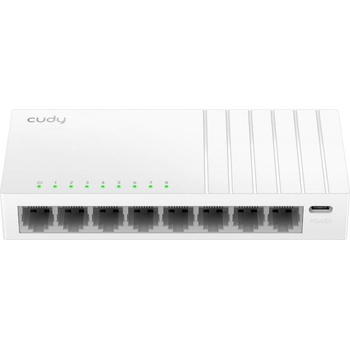

Compact Size. Modern Design.

Compact enough to fit in most home network distribution boxes. The wave line white casing casts a modern aesthetic. The retail package comes with a USB-A to USB-C power cable.



Model Version GS108U 2.0Interfaces Gigabit RJ45 Ports 8  LED

• Power
• Link/ACT of Each Ethernet Port

  Power Interfaces USB-C PortPerformance Max Copper Speed and Distance

• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 170 meters at Gigabit

  MAC Address Table 4096  Max Switching Capacity 16 Gbps  Max Forwarding Rate 11.904 Mpps  Jumbo Frame 9 KB  Packet Buffer 1 MbitPower Basic Power Saving    Power Methods USB-C  Power Input 5V⎓  Max Power Consumption 4W  Idle Power Consumption 1.18WSwitching 802.3 Protocols

• 802.3x Flow Control
• 802.3i 10BASE-T
• 802.3u 100BASE-TX
• 802.3ab 1000BASE-T

Reliability EMS IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: 2kV  Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensingMechanical Dimension 138×61.5×24 mm
5.43×2.42×0.94 inches  Product Weight 87.5 g (3.09 oz. )  Casing Material Plastic  Installation

• Desktop
• Wall-mount
